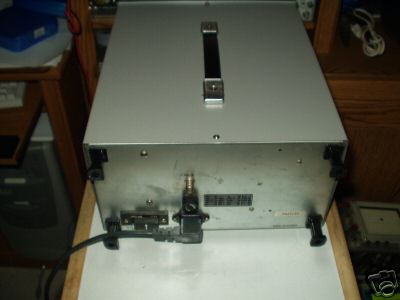

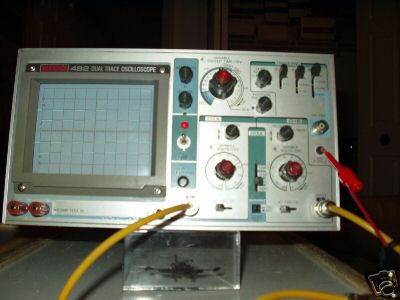

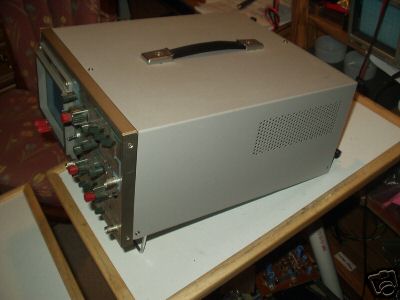

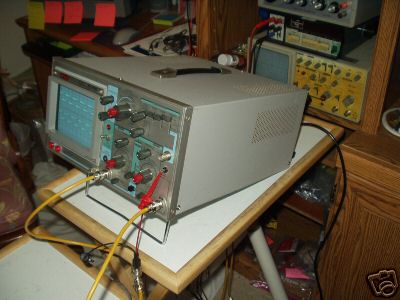

This oscilloscope is in excellent condition, AND it is Calibrated Vertically and Horizontally. It is being sold with OPERATIONAL WARRANTY. This is a dual trace 20MHz oscilloscope which uses a high brightness CRT. The Vertical Amplifiers have high sensitivity of 5mV/DIV and the frequency characteristic response with smooth rolloff exceeding 20MHz. The highest triggering sweep speed is 0.2 usec/DIV. 2) Wide Bandwidth and high sensitivity 5) Z Axis (Intensity Modulation) 7) High frequency rejection filter in the trigger circuit 8) Front Panel electrical trace rotator The Component Tester is a special circuit in which a single component(s) can be easily tested IN or OUT of the circuit board requiring NO power to drive the circuit. The display shows FAULTS or compontnts, size of a component value, and characteristics of the component, and half dead components when using the internal dynamic test. Section 2 Specifications are too lengthy to include in this descritpion but they will be provided upon request. Pictures are provided which should suffice; however, additional pictures will be provided upon request. Please note the "Calibrated" Waveforms", the same quality one would expect upon receiving it from the factory. The quality of the waveform brightness was affected by the Camera Flash. (Oscilloscope..eico 482 (2) ch calibrated/operational was posted and is owned by: Amy Molina) |
