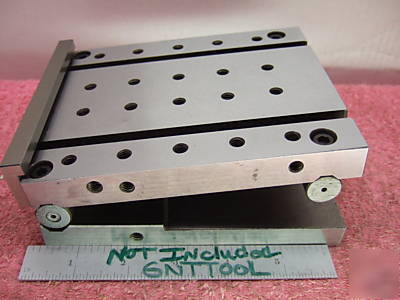

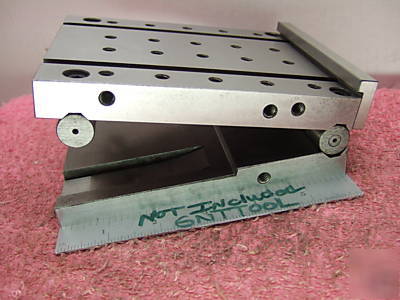

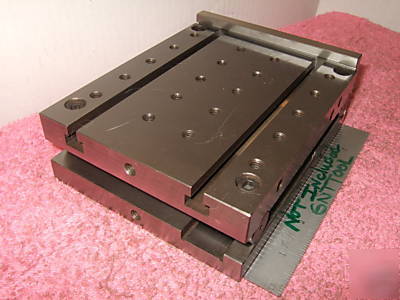

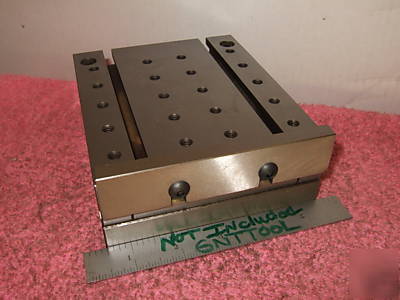

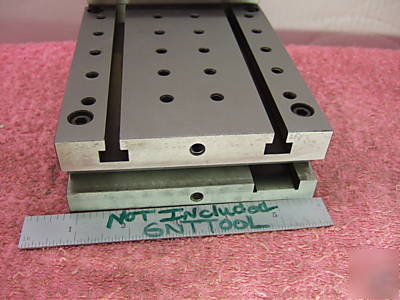

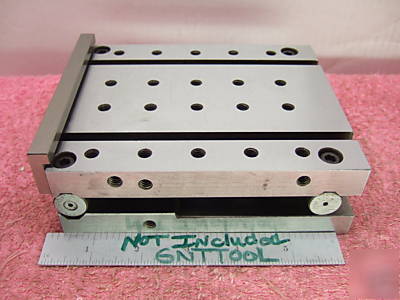

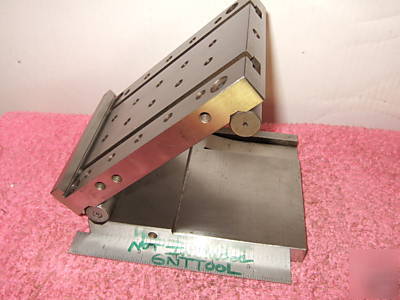

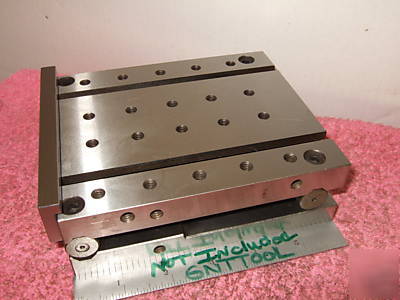

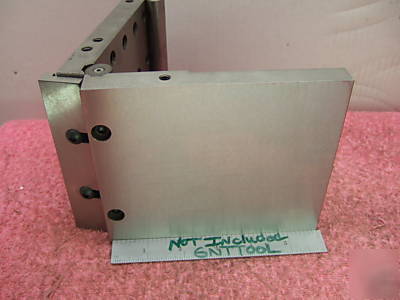

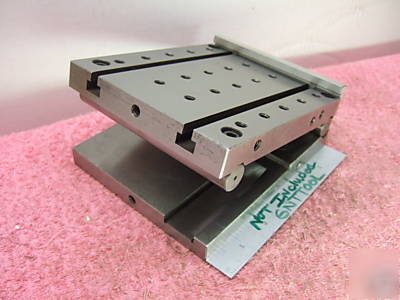

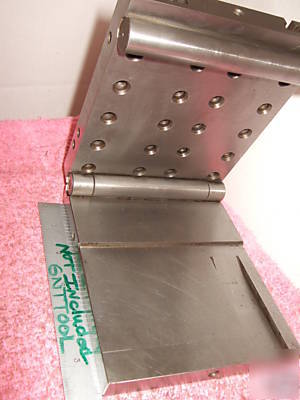

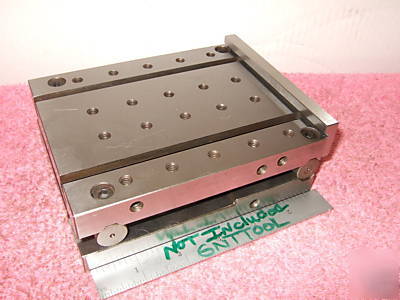

PRECISION GROUND SINE ANGLE PLATE WITH SLOTS FOR 1/4" T-BOLTS. NO MAKER NAME OR TAG IS MARKED BUT THIS IS PERHAPS AN ATCO OR RALMIKES BUT IT IS NOT A SUBURBAN TOOL CO. SP-555 AS WE HAVE ONE LISTED AND USE ONE. IT IS VERY SIMILAR BUT DOES NOT HAVE GROUND STEPPED ROLL BUT A STEP GROUND INTO BASE PLATE FOR MINUTE ANGLES. PLATE HAS (32TOTAL) 1/4" X 20 HOLES AS SHOWN (20) IN TOP PLATE FACE. FRESHLY GOUND USING HERMANN SCHMIDT SQUARING BLOCK AND A BALL-WAY SURFACE GRINDER WOW IT IS NICE!!!!! SINE ANGLE PLATE IS AS SHOWN IN MINT PRECISION GROUND CONDITION. MACHINIST OR TOOLMAKER TYPICALLY USED FOR GRINDING OR INSPECTION AS IT IS A PRECISION GROUND SINE PLATE. SINE ANGLE PLATE MEASURES 5.005" WIDE X 1.840" TALL AND IS 6.0" LONG . TOP PLATE FACE HAS (20) TAPPED HOLES 1/4" X 20 IN FACES AS SHOWN AND (2) SLOTS .26" WIDE X .475" WIDE AT BOTTOM AND ARE .518" DEEP WIDTH AT BOTTOM OF T-SLOT IS .475". TO BOLT DOWN PRECISION TOOLING AS NEEDED, AS SHOWN IN PICS. SUPER NICE CLEAN READY TO USE PLATE USED AND MADE BY AMERICAN TOOLMAKERS!!!!! PLATE IS IN NICE READY TO USE CONDITION AS SHOWN. I HAVE MANY TOOLS TO LIST FROM THIS XCELLENT XCELLENT TOOLMAKER,CHECK BACK OFTEN AND SEE OUR STORE! (Sine plate 5" toolmaker machinist hardened slotted wow was posted and is owned by: Haley Maddox) |
