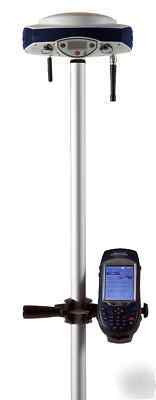

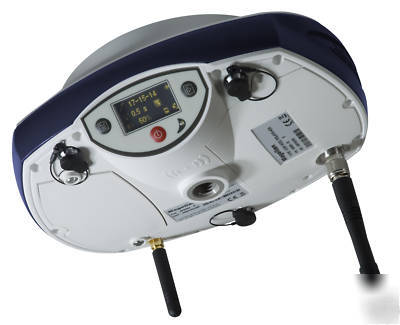

ProMark 500 GNSS RTN Rover( GSM or CDMA) With Unlimited RTK option (this option is not required inside the VPN) This option is required for single baseline solutions beyond 3 Km The new Magellan ProMark 500 offers Triple-Constellation (GPS+GLONASS+SBAS) RTK and 20 years of field-proven technologies for surveying and geodesy. Magellan s latest RTK survey solution delivers state-of-the art GNSS in a smart, compact, light and cable-free design that gives you maximum mobility and flexibility in the field. You will be able to not only take advantage of currently available GPS, GLONASS, and SBAS signals, but also be comfortable knowing that you can upgrade your receiver to meet the evolution to future constellations (meaning Galileo will be supported with a hardware upgrade with Galileo is available). With ProMark 500, Magellan brings to the market a unique blend of technologies which increases RTK availability. Embedded BLADE technology introduces a unique patented way to use multiple GNSS constellations for high-accuracy positioning, maximizing the benefit of adding extra satellites to its already stellar GPS performance. BLADE insures fast initialization, long-range accuracy, and extensive compatibility with other manufacturer's GNSS products. New technology provides robust signal tracking, advanced multipath mitigation, and high availability of satellites in difficult conditions. Pacific Crest UHF Modem: Built-In, supports TrimTalk and EOTT formats Unlimited Data Expansion: Built-In Field Replacable Batteries: Yes (Standard $20 CamCorder battery lasts 7-hours!) - GPS L1 C/A L1/L2 P-code, L1/L2 full wavelength carrier - GLONASS L1 C/A, L2-P code, L1/L2 full wavelength carrier - SBAS: code & carrier (WAAS/EGNOS/MSAS) - Low-signal acquisition and tracking engines for signal detection in difficult environments Fully independent code and phase measurements Magellan BLADE technology for optimal performance Advanced multipath mitigation Typically 2-second initialization for baselines < 20 km WHAT THE SYSTEM INCLUDES and WHAT IS IN THE BOX: MobileMapper CX Field Terminal Spare ProMark 500 internal battery Spare MMCX Lithium-Ion battery External Dual-Slot Battery Charger for MMCX a host cable (for connecting a flash drive), a device cable (for mounting the PM500 as a disk drive on your PC), a HI Tape,an extension, plate for mounting directly on a tripod and a Magellan soft case. Rovers will have an internal Pacific Crest RXO module built into the PM500. Every PM500 also comes with a quad band GSM cell antenna. SBAS (WAAS/EGNOS/MSAS): Horizontal: <3 m (10 ft) Real-Time DGPS position: < 0.8 m (2.62 ft) Real-Time Kinematic Position (fine mode): Horizontal 10 mm (0.033 ft) + 1.0 ppm Vertical 20 mm (0.065 ft) + 1.0 ppm RTK Initialization range: > 40 km Post Processing Accuracy (rms) Horizontal 5 mm (0.016 ft) + 0.5 ppm Vertical 10 mm (0.033 ft) + 1 ppm Spare 7.4 V - 4.4Ah Li-ion Battery Pack (rechargeable) ProMark500 User Documentation CD AC/DC Power Supply Kit (includes external AC adapter, battery charger and cable extension for powering ProMark 500 from the AC adapter) USB Device Cable (short). Makes ProMark 500 a USB host. Radio receiver kit (includes radio module, whip antenna and small parts) MAKE A COMPLETE SYSTEM: Price $13,949 (One receiver) Kit, Power supply AC/DC contient: ProMark 500 getting started guide GNSS Solution RTK + L1 post processing ProMark 500 GNSS Unit #990596 (with all accessories as above) with: GLONASS Upgrade (6805500), Unlimited RTK option (680502), GSM/GPRS Activation (680528, Kit U-Link Rx, 450-470/12.5 kHz (for ProMark 500) (802083-50)and 2x MobileMapper CX Field Terminal (800981-09). MobileMapper CX Field Terminal (800981-11) Fast survey GPS module with Total station option MobileMapperCX controler, color screen, integrated Bluetooth In addition to receiver, you will need a prism pole for the rover and a tripod for the base. Hard Case optional (#206215) for $350 Note: this package does not include rover rods, tripods or the hard case. Please email with any question you might have. (Promark 500 gnss rtn rover(gsm or cdma) unlmtd rtk optn was posted and is owned by: Claudia Mcdaniel) |
