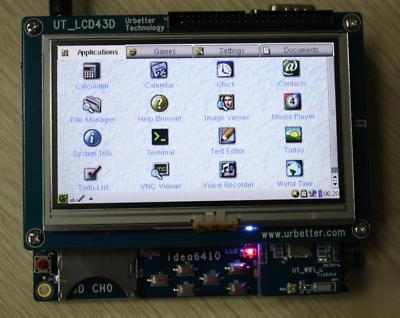

. Rugged Single Board Computer(120mmx100mm) achieved through modern SMD technology . Improved interference safety achieved through multi-layer PCB technology and dedicated ground pins . Controller signals and ports extend to connectors aligning two sides of the board . Four Ready-to-Run software package: WinCE6.0, Linux2.6.24, Android and Ubuntu . Processor: ARM11 Samsung S3C6410, ARM1176JZF-S, up to 667MHz. . 128MB Mobile DDR SDRAM, 266MHz, Samsung K4X51163PC . 256MB NAND Flash, Samsung K2F2G08 . 2M Bytes NOR Flash, AMD AM29LV160DB . SDIO WIFI Module, supporting IEEE802.11b/g . LCD/Touch Screen interface. Supporting 3.5 inch TFT LCD, 4.3 inch TFT LCD and 7 inch TFT LCD. . Many modules are available for your choice- GPS, WIFI, Camera, USB Bluetooth,USB HUB+4x4 Matrix Keyboard and USB 3G Modem . 24 GPIO ,4 ADC,1 IIC and MMC connectors . One audio input interface (3.5mm audio jack) . One 2-channel audio output interface (3.5mm audio jack) . One 100M Ethernet interface (RJ45) . One USB2.0 Device port (Mini USB type interface) . Four serial ports (Two are five-wire RS-232 DB9 interface, another two are three-wire TTL serial ports led out from expansion connectors ) . SD/MMC interface (supports 3.3V and 1.8V logic voltage) . Camera interface (10x2 pins header, supporting the mode of ITU-R 601/656 8bit) . Seven buttons (Reset, Boot, User defined, On/Off) . CPU Working temperature: -20 C to 70 C Idea6410 is a compact full-featured Embedded Single Board Computer(SBC) based upon Samsung ARM11 S3C6410, designed specifically for Mobile Internet Device , Notebook, handheld / 3G mobile implementations. Its functional contents are similar to the latest generation of Pocket PC's and smartphones, This computer allows easy embedded application development through PC-Compatible tools and methods, while ensuring in-field reliability and ruggedness for end-user systems. Other chip-level features include 4 UARTs, SPI, I2C, a real-time clock with a separate power domain, and NAND Flash and DDR memory controllers. These features make the devices particularly suitable for automotive and industrial control applications as well as medical systems. In addition to Windows Embedded CE 6.0 and Linux2.6 support,ready-to-run Android and Ubuntu are available from Boardcon. User can use Microsoft EVC or provided development tools in the CD-ROM for development to speed your time to market. The package includes the SBC, LCD, Windows Embedded CE 6.0 or Linux OS BSP, complete electronic documentation, schematics, demo applications, and third party Cross compilers (Arm-none-linux-gnueabi, 3.3.2 , 3.4.1 , 4.2.2-eabi) and embedded development environments (DNW, MoviNAND_Fusing_Tool.exe, activesync,sdboot, TCPMP, USB Interface Driver and so on) for evaluation. 1. Supporting Nand Flash erase/write/read 2. Supporting USB download Image 3. Supporting print, set, save Environment Variables 4. Supporting memory s contents display/compare/modify 5. Supporting bootm, bootargs setting 1. SD Card boot-up and download Image via USB (can replace JTAG) Supporting Image update from SD Card or USB ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS DDR RAM, Nand Flash, Serial ports, RTC, Ethernet, 3.5 ,4.3 and 7 LCD including Touch Screen, MMD/SD, USB Host, LEDs, AC97, Camera, USB Keyboard and Mouse, IIC, SPI, WAVEDEV, DMA,JPEG, MFC, TVOUT, OpenGLES1.1&2.0, D3DM Provided Lib (ALSA -lib, tslib, glibc), udev support Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager. TCP/IP protocol, Telnet, FTP Client/server, Boa webserver H.264 display, MPEG-4 display, H.263 display, VC-1 display, 4-windows display, Camera preview & MFC encoding, MFC decoding & Camera preview, Camera input and JPEG encoding, JPEG decoding and display, MFC decoding & Camera preview thru TV, H.264 decoding thru TVOUT Providing Source code and STEPLDR.bin Providing Source code and EBOOT.bin 1. Ethernet download: Set static IP, HDCP gets Dynamic IP, Mac address setting, download kernel automatically by Ethernet when the system starts 2. USB download: update the image via USB OTG 2.0 1. 3.5 ,4.3 ,7 LCD,10.2 and 10.4 (LVDS) including Touch Screen, TVOUT, LEDs 3. Supporting LCD display rotate SD card, High speed SD card, SPI, AC97, Camera, Ethernet, USB Host, USB Device, Serial ports, RTC,GPS, WIFI,IIC,JPEG, SPI, Keyboard, NandFlash, wavedev, CF_ATA, CMM, DMA, DrvLib, MFC, Powerbutton, Powercontrol, UA0 Power Management (backlight drive, battery-driven, sleep/wake-up function), Hive registry support, ROM file system support Providing Source Code and user manual, supporting MPEG-4/H264/H263/VC-1 and API operation manual Providing Source Code including: AACDecoderFilter, FrameExtractFilter, MFCDecoderFilter, MP4testcode, mpeg4ip_mp4v2, SsapMP4Parser JPEG/JPG encoding and decoding, providing driver and test program. OpenGL ES1.1&2.0, providing source code and user manual Supporting CMOS Image sensor-ov9650/9653/9655 Hardware decode MPEG-4/H263/H264/VC-1, supporting avi,mp4, m4v, mov, 3gp, flv, MPG. Supporting MP1, MP2, MP3, AC3, AAC more audio kinds. Word, Excel, PowerPoint, PDF,txt Boot Android from SD card, NAND Flash Support updating image from SD card or USB DDR, Flash, Serial ports, RTC, 4.3 and 7 LCD including Touch Screen, MMD/SD, High Speed SD card, user buttons, DM9000, SPI, keyboard, WAVEDEV, DMA, USB device, JPEG, MFC, TV OUT, Rotator, OpenGGES1.1 & 2.0, D3DM Yaffs2 (Androidfs-sdk-m5-rc15) Support file browser, Mediaplayer Alarm Clock, ASTR0, Mediaplayer, Music, Picsay, Gallery, Browser, Panda Reader SDROM, Flash, Serial ports, RTC,4.3 and 7 LCD including Touch Screen, MMD/SD, High Speed SD card, user buttons (Samsung ARM11 S3C6410 board kit 4.3 tft lcd 4OSS was posted and is owned by: Mariana Velasquez) |
