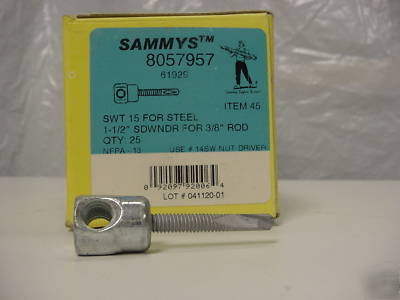

DST, DSTR, TEK 50, SWD, SWDR, SWT See Figures 1 through 4 (vertical) and 11 through 14 (horizontal) of detailed installation instructions for illustrations. DST self-drills & self-taps into steel up to 3/16" thick. DSTR self-drills & self-taps into steel up to 3/16" thick and accepts retainer nut. TEK 50 - Self-drills & self- taps into steel up to " thick. SWD self-drills & self-taps through 3/16" steel. SWDR self-drills & self-taps through 3/16" steel and accepts retainer nut. SWT self-drills & self-taps through " steel. Step 1: Insert the appropriate nut driver into a 3/8" or " portable drill: 1. use #14 Nut Driver for DST, DSTR, TEK 50; 2. use #14SW Nut Driver for SWD, SWDR, SWT. Step 2: Insert the screw into the nut driver. Now you are ready to install the screw. Step 3: Position drill and begin installation: 1. for installing DST, TEK 50, DSTR*, the drill should be in a vertical position; 2. for installing SWD, SWDR*, SWT, the drill should be in a horizontal position at a right angle to the structural member. Step 4: When the nut driver spins freely on the cap of the screw installation is complete. Step 5: Screw is now ready to receive 3/8" or metric all-thread rod or bolt stock. (Itw buildex sammys swt 15 for steel to side 3/8" rod 64 was posted and is owned by: Judith Workman) |
