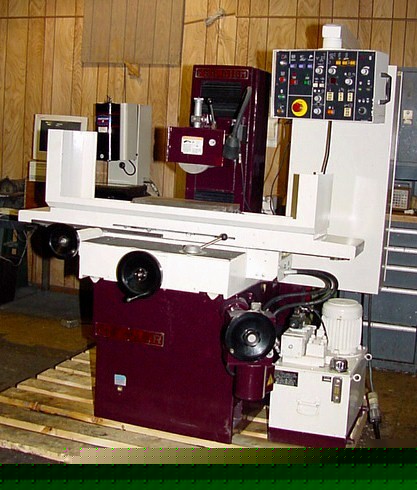

2001 CHEVALIER FSG-3A818 3 AXIS AUTO SURFACE GRINDER 8" X 18" CHEVALIER PRECISION SURFACE GRINDER W/MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED MODEL: FSG-3A818 S/N: M3898002 NEW: 2001 MAX. GRINDING CAPACITY ...................... 8" X 18" MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .... 19- 3/4" MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ....... 21" MAX. CROSSFEED TRAVEL, AUTOMATIC ............. 9" MAX. CROSSFEED TRAVEL, MANUAL ................ 9- 1/2 " DIST. FROM SPINDLE CENTER TO TABLE ........... 18 " VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM AUTOMATIC CROSSFEED INCREMENT ........... 0.02" TO 0.24" RAPID TRAVEL, CROSS FEED ...................... 48" IPM CROSSFEED HANDWHEEL, PER GRADUATION ........... 0.001" PER REVOLUTION ........... 0.2" AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002" AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005" PER REVOLUTION ................................. 0.1" RAPID TRAVERSE RATE ......................... 13" IPM SPINDLE MOTOR .................................. 2 HP STANDARD GRINDING WHEEL .......... 8" DIA. X 1/2" X 1.25" APPROX. WEIGHT .............................. 2,620 LBS. APPROX. FLOOR SPACE REQUIRED ........ 86" X 61" X 75"H FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY -AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE) -SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES -AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE -POWER RAPID WHEELHEAD POSITIONING TABLE GUIDEWAYS ARE HARDENED AND GROUND BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY "MICRO" FINE FEED FOR VERTICAL AXIS (.0001" GRAD.) OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT 8" X 18" O.S. WALKER ELECTRO-MAGNETIC CHUCK W/NEUTROFIER CONTROL ON MACHINE'S CONTROL CONSOLE COOLANT SYSTEM W/FILTRATION & COMPLETE W/SPLASH GUARDS 2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLT OPERATION ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE** (2001 chevalier fsg-3A818 3 axis auto surface grinder was posted and is owned by: Carolyn Rodriquez) |
crodriquez@chicagopartsnetwork.com (Carolyn Rodriquez) for more information.
