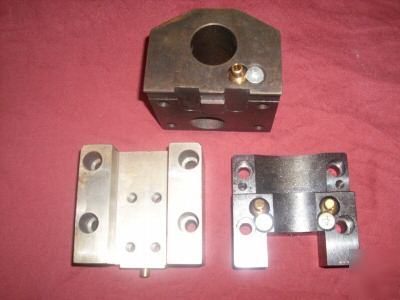

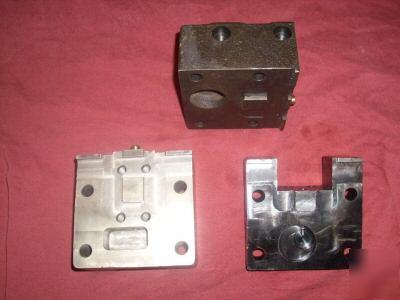

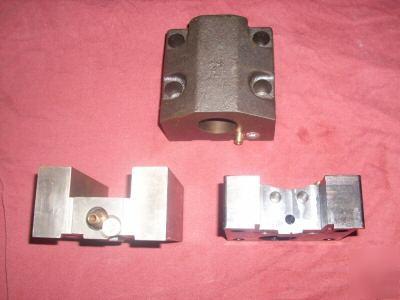

4.350" wide x 4.100" and hole pattern is 3.380" x 2.165" these were measured with a caliper. .700 counter bore and .455" thru holes there is a step on front and a locating raise shoulder on the bottom and all have thru coolent and the brass directional ports. (Okuma mori seiki lathe tool holders tool blocks id /od was posted and is owned by: Imogene Delaney) |
