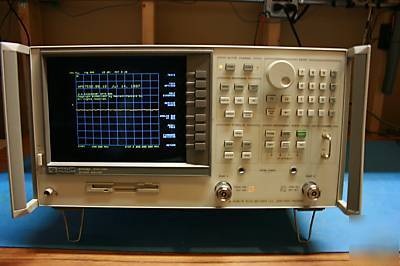

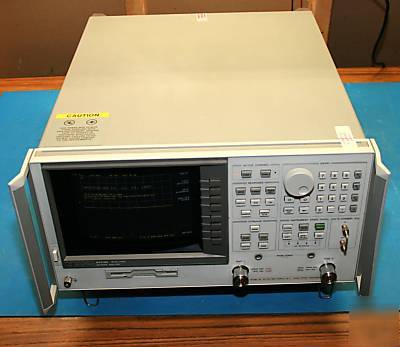

HP Agilent 8753D Vector Network Analyzer Unit is in excellent condition! The 8753D Network Analyzer provides affordable excellence in RF network measurement for the lab and production testing. The unit gives you a complete solution for characterizing active or passive networks, devices, or components from 30kHz to 6 GHz. The instrument has two independent display channels for simultaneous display of reflection and transmission, magnitude and phase, or time-domain and swept-frequency measurements. * Built in S parameter test set * Superb accuracy, with the most comprehensive calibration available * Mixer testing with frequency offset capability * Pass/fail testing, interpolative error correction, test sequencing, and user-defined test frequencies to enhance productivity * Two independent display channels for simultaneous measurement of reflection and transmission characteristics * Up to 110 dB of dynamic range * Save/Recall to built-in disk drive * Frequency Accuracy: +/- 10 ppm * Frequency Range: 30 kHz - 6 GHz * Frequency Resolution: 1 Hz * Output Power Range: -85 dBm - +10 dBm (Hp agilent 8753D network analyzer 006 6GHZ calibrated was posted and is owned by: Rachel Bush) |
rachelbush@chicagopartsnetwork.com (Rachel Bush) for more information.
