Bird coaxwitch model 7422 coax switch dc - 10 ghz.


Bird coaxwitch model 7422 coax switch dc - 10 ghz.

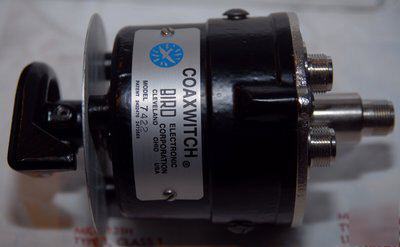

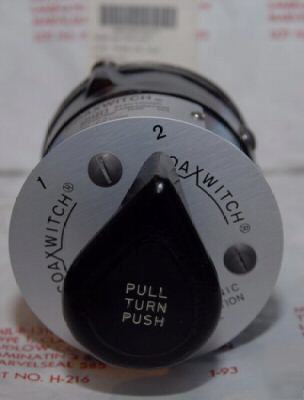

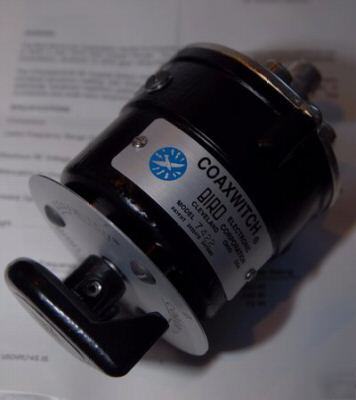

The Bird Electronic Corporation Series 74 COAXWITCH is a manually operated selector switch for use in 50/51.5 and 70/75 ohm coaxial circuits. The switch is designed for use in switching antenna, transmitters, receivers, or other gear using 50/70 ohm coaxial impedance.

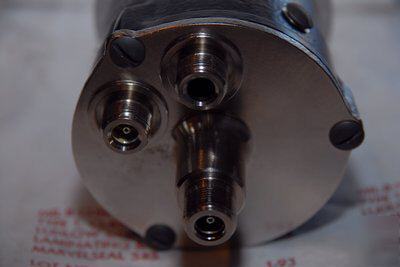

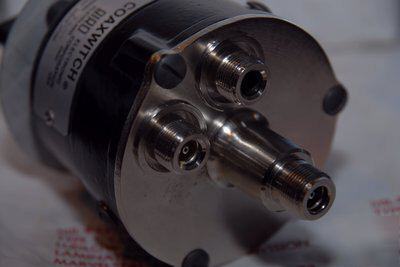

The COAXWITCH RF Coaxial Switch meets rigid MIL specifications. The unit is housed in a black anodized aluminium casting, with nickel plated brass Female N connectors and connector plate. A selectively hardened cadmium plated ground steel shaft is used for the switching operation. The connectors and shaft have neoprene seals, making the entire switch installation splash proof.
Model 7422 2 position Coax Switch
Useful Frequency Range 50 ohms : DC to 10 GHz
Useful Frequency Range 75 ohms : DC to 1 GHz
Maximum RF voltage : 500 volts RMS
Attenuation to unused channel : 75 dB (cross talk)
Ambient Operating Temperature : -60C to +65C
http:// /products/product.aspx?id=256
http:// /products/pdfs/selector_chart.htm
