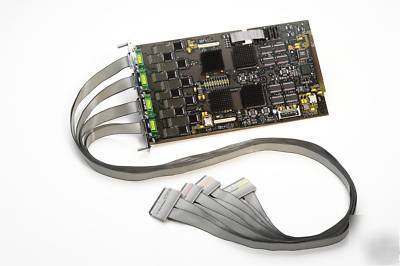

Agilent 16950A 68 Channel 4 GHz Timing/600 MHz State Logic Analysis Module Updated firmware and software Full production calibration (with actual test data) Same standard accessories and manuals as new units Same warranty as new products For more information, see all CertiPrime Features and Benefits in our store. The Agilent/HP 16950A timing and state analysis module offers 4 GHz high speed timing analysis and state speeds up to 600 MHz. The software upgradeable acquisition memory allows you to upgrade your acquisition hardware as your needs evolve. Used with the fully modular and customizable 16900 Series logic analyzer mainframes, this logic analyzer system offers the performance, features, and functionality needed to debug and validate today's digital systems easily and accurately. For more information, see the Data Sheet. Timing Analysis (Asynchronous Sampling) * 4 GHz (250 ps) timing zoom with 64 K memory * 1.2 GHz / 600 MHz (half / full-channel) conventional timing with deep memory * 600 MHz transitional timing State Analysis (Synchronous Sampling) * State clock rates up to 600 MHz * Data rates: up to 800 Mb/s * Automated threshold/sample position setup for accurate measurements on high-speed buses * Simultaneous eye diagrams on all channels identify problem signals quickly * New Calibration Certificate with detailed calibration data included * We offer 7 days right-of-return * One year Agilent warranty included (Agilent certiprime 16950A logic analysis module was posted and is owned by: Sherri Morton) |
