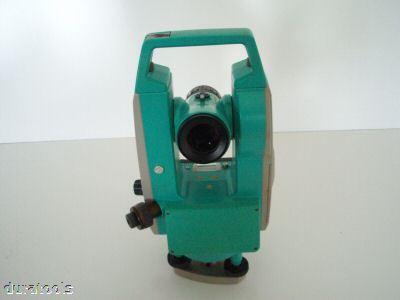

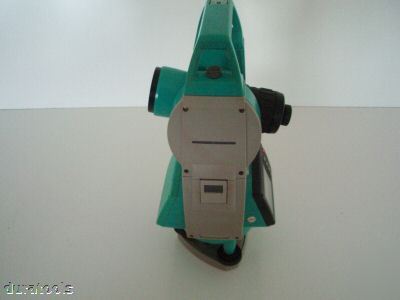

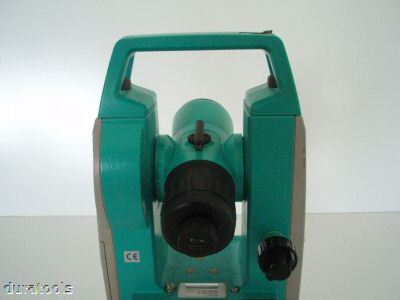

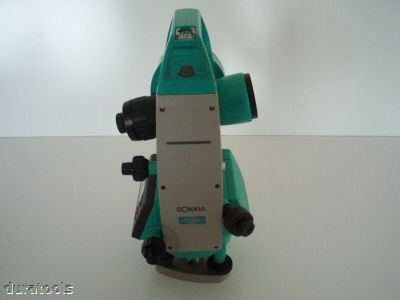

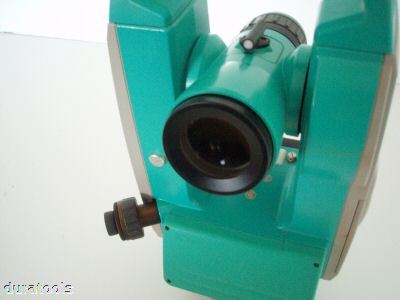

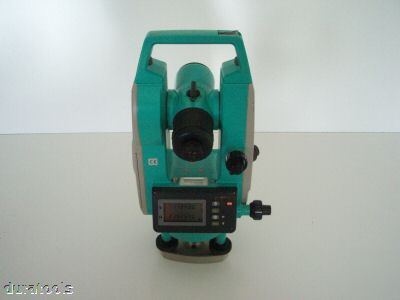

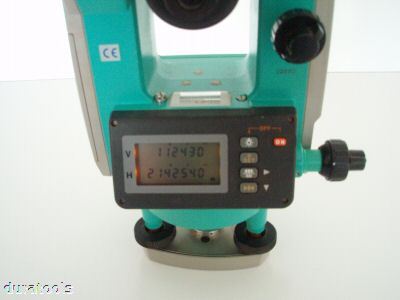

Sokkia DT610 Digital Theodolite The DT610 Electronic Digital Theodolite offers fast accurate angle readings, automatic indexing and a variety of software features. The IP66 waterproof rating allows you to work even in adverse conditions dependably and accurately. The DT610 features a large LCD display on one side with readings to 7". The LCD display eliminates hard to read verniers Readings are displayed within 7" Percentages of slope or vertical angles and horizontal angles are displayed simultaneously Read angles to the right or left Automatic indexing quickly and accurately positions your vertical circle for measuring vertical angles and using the telescope as a level 26x telescope with built-in reticle illumination * Telescope Magnification: 26X * Display Resolution (selectable) H & V: 5"/10", 1/2mg, 0.02/0.05mil * Accuracy (ISO 12857-2 1997): 7"/2.2mg * Display: LCD, 8 digits x 2 lines w/built-in illumination on one face * Compensator: Dual-axis compensator, working range ±3" (±55 mgon) * Dust and water protection: IP66 (IEC60529) * Weight with handle and battery: 4.2kg (9.3lb.) * Battery: LR14/C batteries x2 * Continuous use with alkaline batteries: Approx. 110 hours (Sokkia electronic digital theodolite surverying transit was posted and is owned by: Felix Ellison) |
f.ellison@chicagopartsnetwork.com (Felix Ellison)
for more information.
