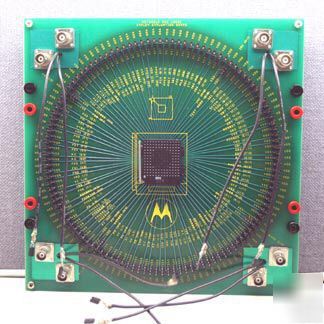

MOTOROLA MOS LOGIC SMPL24 EVALUATION BOARD 2400-GATE MACROCELL ARRAY SAMPLE IC (031606606130) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Motorola MOS Logic SMPL24 Evaluation Board 2400-Gate Macrocell Array Sample IC * The SMPL24 is a sample version of the HCA6324, a part of Motorola’s HCA6300 family of semi-custom macrocell array devices. The HCA6300 family utilizes a dual-layer metal, 3-micron, silicon-gate HCMOS technology, resulting in high-speed, low power consumption, and high noise immunity. * 3-Mocron, Silicone-Gate, High-Density CMOS * Typical Propagation Delay: 2.5ns for a 2-Input NAND Gate (VDD = 5 V, TA = 25 Celsius, CL = 1 pF) * Diode Protection on All Inputs * Minimum Output Drive Capability: 10 LSTTL Loads * Wide Operating Voltage Range: 3 to 6 Volts (Motorola SMPL24 logic evaluation board macrocell array was posted and is owned by: Corrine Franklin) |
