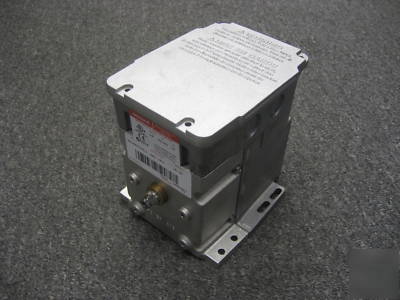

24V Non-Spring Return Foot Mounted Actuator with 75 lb-in. torque Series 90 Modutrol IV Motors non-spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or valves. Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position. Motor and circuitry operate from 24 Vac. Motors have field adjustable stroke (90 to 160 degrees). All models have dual shafts (slotted and tapped on both ends). All models have auxiliary switch cams. Fixed torque throughout the entire voltage range. Adjustable; 90 to 160 degrees, Symmetrical External Auxiliary Switches Available Power Consumption Driving (VA) 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep 164 mm high x 140 mm wide x 185 mm deep Temperature Range, Ambient (F) Temperature Range, Ambient (C) Deadweight Load on Shaft (Either End) (lb) Deadweight Load (Combined on both Shafts) Shaft Rotation (upon control signal increase) Clockwise (as viewed from power end) (normally closed) Auxiliary Switch Ratings AFL - 120 Vac Auxiliary Switch Ratings AFL - 240 Vac Auxiliary Switch Ratings ALR- 120 Vac Auxiliary Switch Ratings ALR- 240 Vac Listed: File No. E4436, Guide No. XAPX for USA and Canada EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) (Honeywell M9184D1005 24V actuator M9184D 1005 was posted and is owned by: Cathy Newton) |
