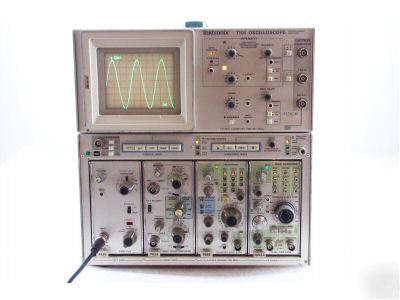

Tektronix 7104 Oscilloscope Mainframe 1GHz w/ Plug Ins The 7104 Oscilloscope provides outstanding writing speed for excellent single-shot capability, with trace brightness about 1,000 times that of conventional oscilloscopes. ** Displays fast transients and low repetition rate signals under normal lighting ** 200 ps/Div fastest calibrated sweep rate ** Ultra-high photographic writing rate Wide-Bandwidth Single-Trace Plug-In Amplifier ** 1GHz bandwidth in the 7100-Series mainframes ** 10 mV/div to 1 V/div calibrated deflection factors The 7A24 Dual-Trace Amplifier Plug-In is designed for use as an amplifier in the 7000-Series Mainframe. Bandwidth: DC to 400 MHz Deflection Factor: 5 mV to 1 V/div Accuracy: 2% Input Impedance: 50 ohms CH2 invert and identify function 7B85 (It has a broken knob but the knob works fine) The 7B85 Delta Delaying Time Base Plug-In is recommended for use with 7700, 7800, and 7900 Mainframes to provide optimum bandwidth / sweep-speed compatibility, but may also be used in any slower 7000-Series Mainframe. Delta Time Measurements with CRT Readout Delay Time Measurements with CRT Readout Vertical Trace Separation between Two Delayed Sweeps Calibrated Time Base: 1 ns to 5 s/div with 1.5% accuracy (50 ns to 0.5 s/div) The 7B92A Dual Time Base Plug-In provides a 0.5 ns/div to 0.2 s/div calibrated time base. The unit has triggering to 500MHz, alternate display of Intensified Delaying and Delayed Sweeps, and Int/Ext/Ext÷10/Line triggering capabilities (main and delay external triggering). The 7B92A is recommended to be used only in the 7800 and 7900 Series Mainframes. The unit also may be used is all other mainframes at slower sweep speeds. IF THE PICTURES DOES NOT APPEAR IN ITS GIVEN SPACE, RIGHT CLICK ON THE SPACE AND SELECT SHOW PICTURE. CHECK OUT OUR STORES FOR MORE QUALITY MERCHANDISE AT A FRACTION OF RETAIL PRICE MrPowertech's Test Equipment Store VISIT OUR HEWLETT PACKARD STORE MrPowertech's Hewlett Packard Store VISIT OUR TEST AND MEASUREMENT STORE MrPowertech's Test & Measurement Store (Tektronix 7104 1GHZ oscilloscope 7A29 7A24 7B85 7B92A was posted and is owned by: Lauri Christensen) |
