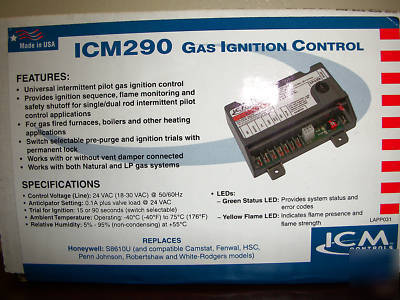

ICM290 PILOT GAS IGNITION CONTROL * Provides ignition sequence, flame monitoring and safety shutoff for single/dual rod intermittent pilot control applications. * For gas fired furnaces, boilers, and other heating applications. * Control Voltage (line): 24VAC (18-30VAC) @ 50/60Hz * Anticipator Setting: 0.1A plus valve load @ 24VAC * Trial for Ignition: 15 or 90 seconds (switch selectable) * Ambient Temperature: Operating -40 degrees farenheit to 176 degrees farenheit * Relative Humidity: 5% - 95% (non-condensing) at +55 degrees celsius * Green Status LED: Provides system status and error codes * Yellow Flame LED: Indicates flame presence and flame strength * Honeywell: S8610U (and compatible Camstat, Fenwal, HSC, Penn Johnson, Robershaw and White-Rodgers models) (ICM290 universal pilot gas ignition module was posted and is owned by: Mae Kline) |
