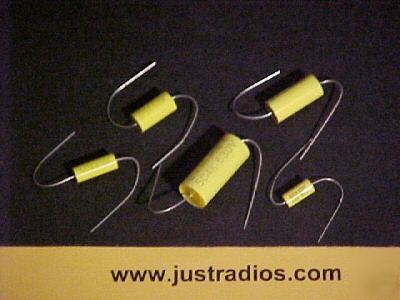

On sale are package of twenty-six (26) brand new 0.047 mfd/uf tubular axial leaded 630 volt metalized polyester film capacitors. These film capacitors are constructed of premium metallized polyester (ISO 9001 & 9002 certified). As are all of our film capacitors, these 630 Volt capacitors are made by ISO 9002 & 9001 certified manufacturer / OEM supplier to CDE (Cornell-Dubilier). Capacitor Features and Specifications:axial_capacitors * Highest quality MET Metallized Polyester Film Construction. * Tubular body, wrapped with polyester film tape and ends sealed with epoxy resin. * Highly stable and reliable with "self-healing" property. * Extra-Long copper-ply 1 3/4" (44mm) axial leads for easy "under chassis" installation. * High moisture resistance and space saving compact size body. * Operating temperature range:-40 to +85C * Capacitance tolerance +/- 10%. * Rated Voltage: DC 630 Volts * Testing Voltage: 160% of rated voltage for 60 second ie over 1000 volts for 1 minute. * Capacitance Range: Available in "hard to find" pre WWII tube radio sizes 0.01 MDF thru 2 MFD (for under 0.01 MFD our Polypropylene capacitors are recommended) * Dissipation Factor at 1KHz =< 1% * Insulation Resistance(min) C=<0.33,RV=<100V:15000Mohm ; C>0.33,RV=<100V:5000Mohm.uF ; C=<0.33,RV>100V:30000Mohm ; C>0.33,RV>100V:10000Mohm.uF * Excellent replacement for paper/wax capacitors in tube radios. * Excellent reputation in use for DC blocking, coupling, filtering and by-pass * Ideal for tube audio/radios/amps, telecommunications equipment, industrial instruments, electronic equipment and other general purposes. * ISO 9001 & 9002 certified. (0.047UF at 630V tubular axial film capacitors : qty=26 was posted and is owned by: Tia Duran) |
Tiaduran@chicagopartsnetwork.com (Tia Duran) for more information.
