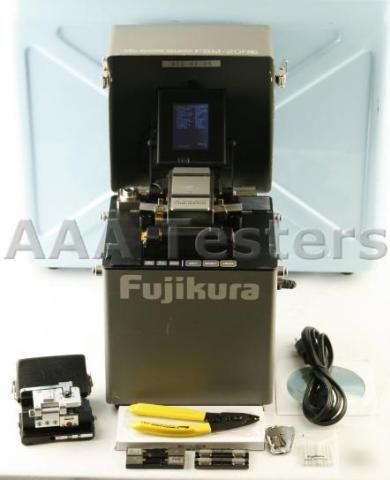

* Fujikura FSM-20RS12 Arc Fusion Splicer * Fujikura FH-12 Fiber Holder Set Fujikura FSM-20RS12 SingleMode & MultiMode Single & Ribbon Fiber Arc Mass Fusion Splicer Includes Fujikura CT-04 High Precision Fiber Cleaver & Full Accessories! The FSM-20RS12 ARC Fusion Splicer is used to splice optical single fiber or fiber ribbons. The FSM-20RS12 can splice up to 12 fiber ribbons. This Fusion Splicer has installed a 4 inch LCD monitor and a heater for spliced portion reinforcement. Besides, it has a built-in microprocessor to perform image processing so that automatic fusion splicing with estimated loss can be achieved. This Fusion Splicer can use AC100-240V 50/60Hz. (Max. 3A) or DC12V (Max. 10A) power sources * Fiber Splicing Capabilities : SM, MM * Splice Loss Estimation Function / Calculation Capability * 3" LCD monitor with excellent view ability in direct sunlight * Memory : 100 splice data sets with internal memory * High Intensity Halogen Inspection Lamp Fujikura FSM20RS Ribbon fusion splicer utilizes a PAS (Profile Alignment System) that aligns the core of single-mode and the cladding of multimode fibers. A built in monitor allows cross-sectional viewing of the prepared fiber ends, and displays cleave angle and estimated splice loss. the system will splice both single-mode and mult-mode fibers. Alignment, fusion and splice loss estimation are automatically completed by the built-in computer. Applicable fibers: SMF at 1310nm; DSF at 1550nm; GI fibers. Average splice loss: 0.03 dB (SMF); 0.05 dB (DSF); 0.02 dB (GI). Includes a built-in tube heater for installing splice protective sleeves. AC- or external 12 Vdc- powered (Fujikura fsm-20RS12 fiber ribbon fusion splicer cleaver was posted and is owned by: Darcy Long) |
d_long@chicagopartsnetwork.com (Darcy Long) for more information.
