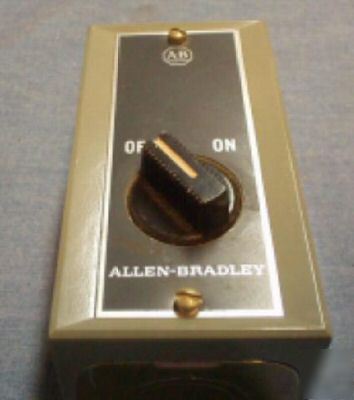

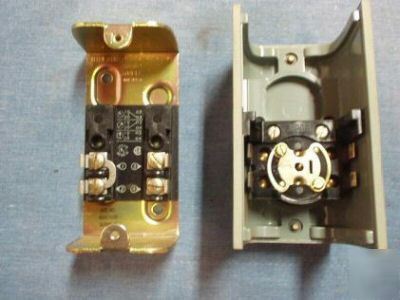

'Flush Mount' OFF-ON Switch by Allen-Bradley, 800S-R2SX As you can see from the pictures, the Back of the switch is mounted and contains the terminations. The Front of the switch contains the Operator and contacts. I do not have any documentation for this switch, but the wiring diagram is marked by the terminal screws. ('flush mount' off-on switch by allen-bradley, 800S-R2SX was posted and is owned by: Roslyn Beach) |
