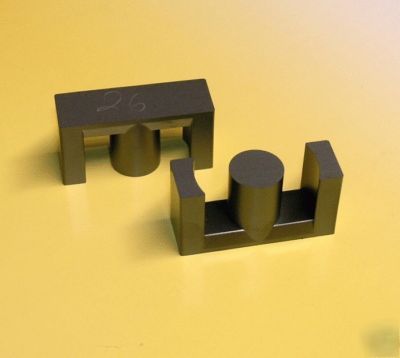

Qty: 2 complete transformers (4 halves) Permeability = 3000, B(sat) = 500 mT Dimensions: 44mm x 22mm x 15mm each half. ETD is the most power-efficient shape for high frequency power transformers BOBBINS ALSO AVAILABLE FOR ETD CORES (SEE OUR LISTINGS). Al value: 5520 nH / T^2 +/- 25%, average of 16 samples from the lot, taken with an Agilent 4275A LCR Analyzer, 20 turns measured between 2.13mH and 2.22mH among 16 cores. (New ETD44 cores, power ferrite, matched 500MT bsat (X4 was posted and is owned by: Armando Maynard) |
