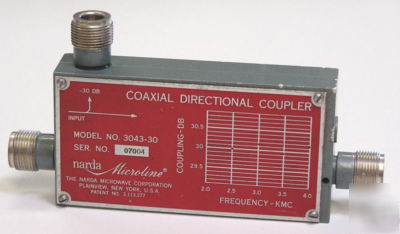

Models 3043-30 is a 30 dB coupler and covers a range of 1.7 to 4.2 GHz with flat coupling and high directivity. This coupler is designed to withstand the most severe environments. The internal strip center conductors are silver soldered and silver-rhodium plated for corrosion-free high conductivity. The passivated stainless steel connectors provide reliable operation over extended periods. Matched Teflon beads support the strip conductors. Calibration is permanently marked on the aluminum nameplate, for 2.0, 2.5, 3.0 3.5 and 4.0 GHz. Four threaded mounting holes are provided for convenient system mounting. AbsoluteCalibrationAccuracy(per 10 dBStep)(dB) MaximumDeviationFromNominal(dB) (Narda 3043-30 type n coaxial directional coupler was posted and is owned by: Norma Curry) |
Norma_Curry@chicagopartsnetwork.com (Norma Curry) for more information.
