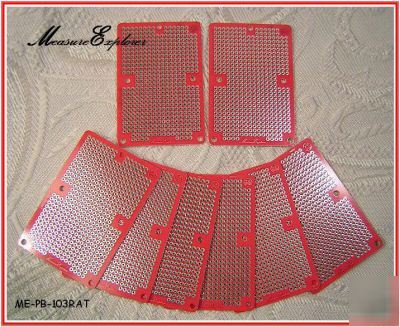

These 3 boards kit allows you to fit you special space as a board string, and the "string" can be bended by any degrees to build a "s" or "c" shape, or you can also mount them together vertically to form a board stack for your spacing. Single copper layer board. I recommend you using a small power solder iron (like 16W) for these non-plated through hole boards, because very high temperature might caouse solder pads drop off the board. Following picture shows the mechanical dimension of the board. 3 serial holes in a raw are tied together for easy soldering of multi wire connections. Rectangle shape with length 2.0 and 3.0 inches 5 4-40 NON-plated screw holes are located (8 me-pb-103RAT prototype circuit development pcb board was posted and is owned by: Clarice Figueroa) |
