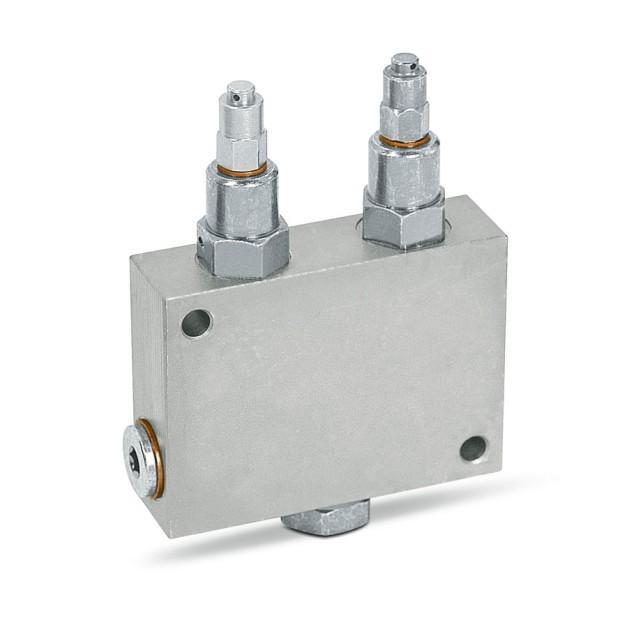

1 Way Special Block No-Stop Plough & Sub-Soiler Tillers HYDRAULIC 3/8" 1 WAY SPECIAL BLOCK FOR NO-STOP PLOUGH AND SUB-SOILERS- V0295 This valve is made up by 2 relief valves and 1 check valve. It is used to supply pressure to tanked systems on non-stop plough and sub-soiler tillers in order to provide protection against shocks. Applications : Connect P to the machine inlet, T to the draining or to the tank for the eventual oil reutilization and C to the system. BP adjusts the charge pressure of system and is set at 80 Bar AP Adjusts the eventual security drainage opening and is set at 250 Bar. * Internal Parts: Hardened and ground steel Please contact us for prices if your destination is not shown in our postal services. (1 way special block no-stop plough & sub-soiler tillers was posted and is owned by: Bobbie Rocha) |
brocha@chicagopartsnetwork.com (Bobbie Rocha)
for more information.
