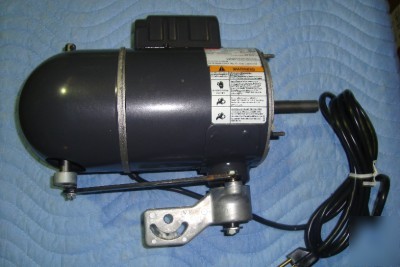

Dayton 5C040 Direct Drive 1075 RPM Blower Motor NEW Dayton 5C040 Direct Drive Blower Motor NEW Designed with integral yoke bracket, except Dayton 3M827 and Dayton 3M826 include yoke strap. Studs allow mounting fan guard directly to shaft endshield. UL Recognized and CSA Certified. Please research safety location information, proper thermal protection, and other motor selection information before using this motor. Direct Drive Blower Motor, Permanent Split Capacitor, Totally Enclosed Air-Over, 1/2 HP, 1075 RPM, Number of Speeds 2, 115 Volts, 5.9 Full Load Amps, 48YZ NEMA Frame, Body Dia 5 5/8 In, Service Factor 1.0, 60 Hz, Yoke Welded Tab Mounting, Ball Bearings, Thermal Protection Auto, Shaft Diameter 5/8 In, Shaft Length 3 1/16 In., CW Rotation, Capacitor Required Included, Ambient 40 C, Insulation Class B, Overall Length 14 In Type: Oscillating Air Circulator Motor, Permanent Split Capacitor 10 Ft. Cord & Pull Chain Switch Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses (New dayton 5C040 direct drive 1075 rpm blower motor was posted and is owned by: Wendi Delgado) |
