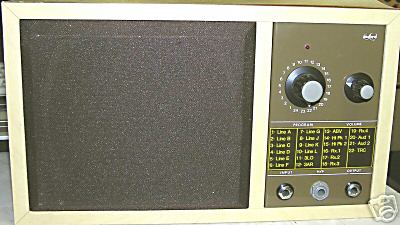

Nicely made audio monitoring station ex Australian Broadcasting Corporation. Headphone output (6.5mm) available on the front panel or you can take a line output plus you can input at the front panel as well. All external connections come out on one cable to a DB50M connector From memory, power is around 12V and its a pretty standard LM380 setup (I think) - I just dont want to undo the whole thing to find out. The cabinet uses a cheap and nasty veneer which is now peeling (these were made in 1982) so either glue them back down or give it a new veneer covering, It will be your job to figure out what wire does what - it wont be difficult but it will be time consuming. Signal source selection is via a rotary 24 way switch Dimension: 190mm height 150mm deep (front to back) and 330mm wide (Custom abc multipoint audio monitoring station was posted and is owned by: Louise Wade) |
