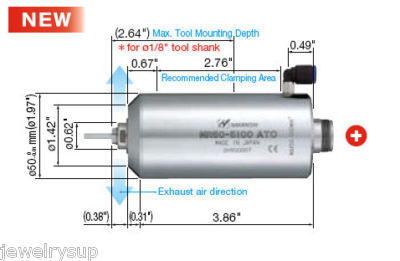

AUTOMATIC TOOL REPLACEMENT SPINDLE NR50-5100 ATC 50,000 min-1(rpm) 1.18" (30mm) The E3000 Series is capable of up to 50,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor. -NR50-5100 ATC Spindle ; Collet 1/8" (CHR-3.175) Air Hose with filter (K-251) : 6 mm x 6 ft Wrench (9 x 11), (12 x 14) : 1 pc. each Bar Wrench (K-236) : 1 pc.. NR50-5100 ATC Spindle Specifications Specially designed for easy tool replacement. The cutting tool can be exchanged automatically by supplying air to the spindle. This high-precision spindle utilizes high precision bearings. Allowable Motor Speed 50,000 min-1(rpm) Air for Collet Opening 80~87PSI Standard Size Collet (CHR-3.175) 1/8" Maximum Motor Speed 50,000 min-1(rpm) The maximum motor speed 50,000 min-1(rpm) is realized by using high performance brushless motor and ceramic bearings. (Nsk e 3000 series automatic tool replacement spindle was posted and is owned by: Georgia Guy) |
