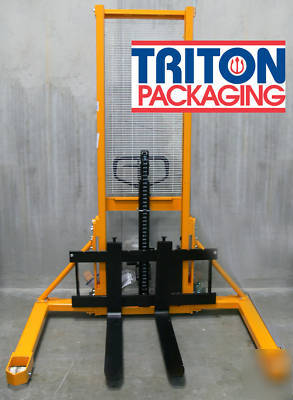

NEW - Lift and Transport Stacker System Transport and Lift Pallets or Loads Securely and Economically Compact Design Allows it to Pass Through Doors and Work in Heavily Congested Areas * Transport and Lift Pallets or Loads Securely and Economically * Compact Design Allows it to Pass Through Doors and Work in Heavily Congested Areas * Meets T V Rheinland / Gepr fte Sicherheit / Conformit Europ enne (TUV/GS/CE) Standard * Capacity: 2200 Lbs (1000 Kg) * Height, mast lowered: 80 inches (2050mm) (*h1) * Height, mast extended: 85 inches (2155mm) (*h4) * Max Lift Height: 63 inches (1600 mm) (*h3) * Minimum Fork Height: 2.75" (70 mm) (*h13) * Distance Between Forks: Adjustable (Up to 29" [740 mm]) * Fork Dimensions: 1 inches x 4 inches x 31 inches (30mm x 100mm x 800mm) * Turning Radius: 47 inches (1200mm) (*Wa) * Load Centre Distance: 15 inches (400mm) (*C) * Overall Width: 57 inches (1450mm) (*b1) * Overall Lenght: 51 inches (1300mm) (*I1) * Width Overall Forks: 37 inches (950mm) (*b5) * Extremely Smooth Operation * Dual Pump Action via Handle or Foot Pedal * High Visibility Powder Coated Yellow * Quadruple Front Wheel Mechanism * Machine Weight: 740 Lbs (336 Kg) (New manual pallet stacker 2200 lbs lift - was posted and is owned by: Lelia Taylor) |
lelia-taylor@chicagopartsnetwork.com (Lelia Taylor)
for more information.
