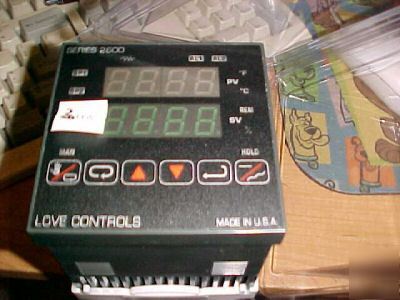

1/4 DIN Temperature Controller and Process Controllers 2600 Series 1/4 DIN Digital Temperature Controller and Process Controllers standard features include Self Tune, Fuzzy Logic, fully adjustable PID, Auto / Manual control with bump less transfer and front panel activation key, percent output indication, peak and valley indication, loop break protection and indication. For process inputs the display is fully programmable from -1999 to +9999 with user selectable decimal point. Most thermocouple and RTD inputs can show whole or tenth degree display. The ramp / soak function has 16 programmable segments, four end of program options, and a run / hold key on the front panel. The 2600 Series 1/4 DIN Digital Temperature Controller and Process Controllers are available with single or dual set point outputs, and can be programmed for on-off, PID or heat / cool or latching alarm. All outputs are isolated from the inputs. Outputs include 10 Amp relay, 2.5 Amp SSR, and 0 to 20 mADC (scalable). 15VDC SSR drive is a standard feature. Optional dual alarms are fully programmable. Other options include Analog Remote Set Point, Analog Retransmission of either Process Variable or Set Variable, Heater Current Monitor, 4-Stage Set point, and Digital Serial Communication for either RS-232 or RS-485. The 2600 Series 1/4 DIN Digital Temperature Controller and Process Controllers sets a new standard in quality, features, ease of use, and value. While having the highest level features and functions, many function setup items only appear in the control menu when the function is selected. There is no need to wade through unnecessary menu items to get to the functions you need. For the best value in a l/4 DIN control, the choice is the Love Controls 2600 Series. Great value. Do not let this get by you! need more than one? let me know. Please check out our other listings. (Love contro; #26150 digital display was posted and is owned by: Sophie Baldwin) |
S-Baldwin@chicagopartsnetwork.com (Sophie Baldwin) for more information.
