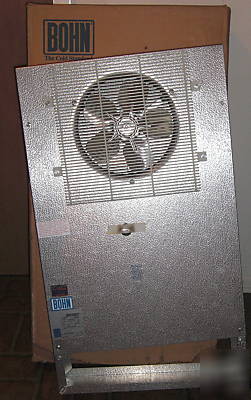

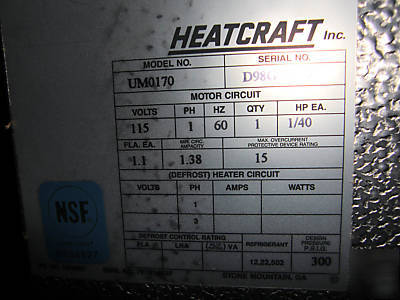

The Bohn Mullion-Aire Unit Cooler is designed for mounting behind the mullions of Reach-ins, Dough Retarders and Pass-thru refrigerators. The air is drawn in through the fan at the top and discharged at the bottom of the unit. The long cabinet assures good air distribution by preventing short circuiting. The finned coil is protected by the exclusive BOHN KOTE finish - a special gray vinyl plastic coating which prevents deterioration of the coil due to attack by acids present in salad reach-ins and other food service and storage applications. The Mullion-Aire units are NSF approved and UL listed. Attractive, light grained, aluminum cabinet meets sanitary cleaning standards. * Stainless steel wing screws used on all removable panels. * Coils have full-collar aluminum fins on expanded copper tubes-Bohn Kote finish. * Refrigerant connection knock-outs provided on side and top. * Expansion valve mounts inside - out of sight. * The motor is life-lubricated and thermal overload protected. * Removable front and back panels. * Max. overcurrent protective device rating: 15 * Min. circuit ampacity: 1.38 * Max. thickness at fan: 5" * Max. thickness w/o fan: 4-3/8" * Height: 38" w/ pan * Height: 32" w/o pan (Bohn mullion-aire unit cooler model # UM0170 was posted and is owned by: Chrystal Alvarado) |
