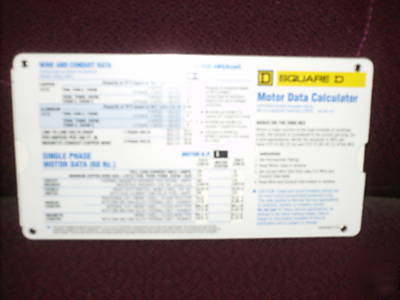

New Square D Motor Data Calculator. Based on the 2005 NEC . Gives you information for three phase motors, single phase motors, wire and conduit data, three phase transformer, single phase transformer. Three/Single Phase Motor Data for 60Hz 1800rpm Standard Squirrel Cage Motors; Motor H.P. Full Load Amps, Minimum Copper Wire Size, Circuit Breaker Thermal Magnetic Trip Rating Amps. Fusible Switch With Dual Element Time Delay Fuse. Magnetic Starter Class Type, With Three Melting Alloy Thermal Units. Voltage, 208, 230, 480, 600. Wire and Conduit Data; Wire Size, Copper/Aluminum, Amps, 3 Phase 3/4 Wire, Conduit Size. Line To Line Volts Drop Per Ampere Per 100 ft. In. Magnetic Conduit Copper Wire, Power Factor 95/80%. Dry Type Transformer Data; Three/Single Phase, KVA Rating, 120/208/240/480/600 Volt Amperage Rating, 1KVA-750KVA. This is a slide chart which gives you all this useful information needed for electrical wiring and knowledge. (New square d motor data calculator was posted and is owned by: Jocelyn Lancaster) |
jocelyn_lancaster@chicagopartsnetwork.com (Jocelyn Lancaster) for more information.
