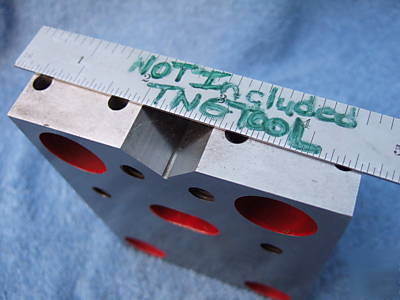

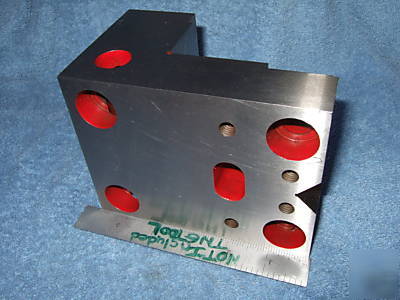

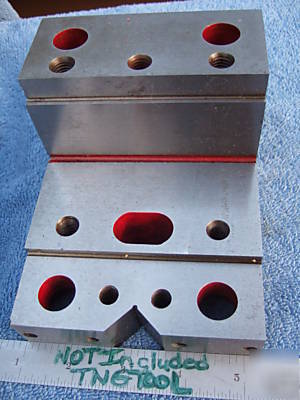

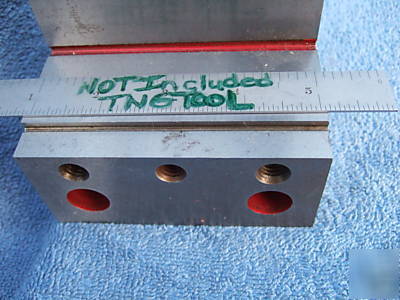

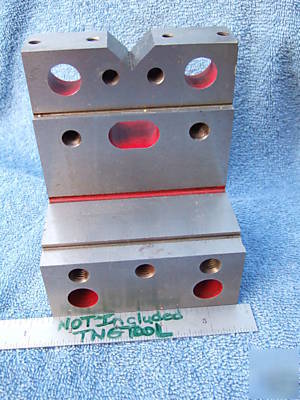

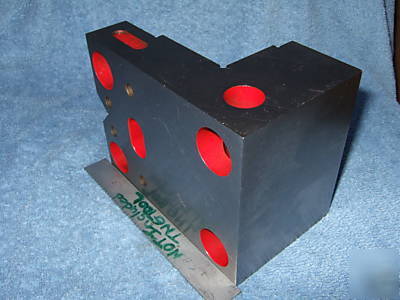

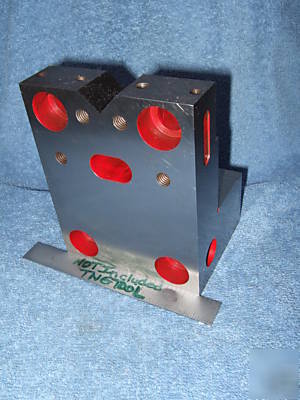

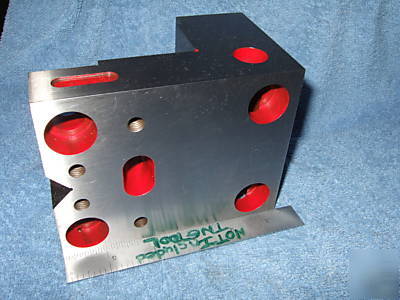

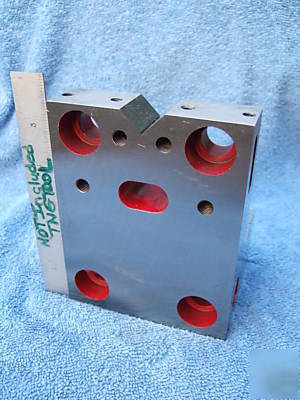

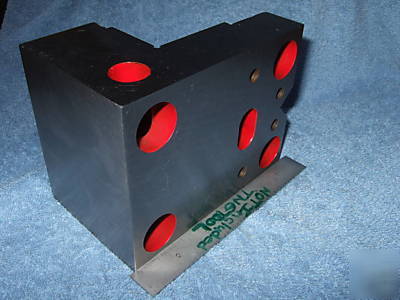

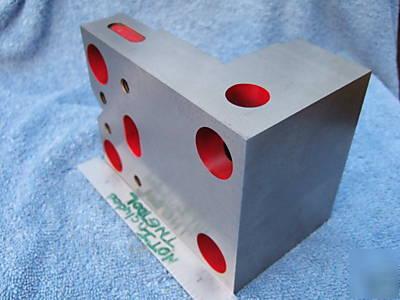

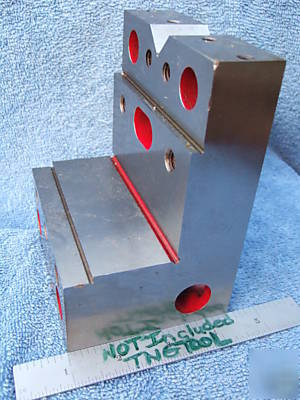

ANGLE PLATE USA AMERICAN TOOLMAKER MADE. WOW ~ ~ ! ! STEPPED ,SLOTTED,TAPPED WITH VEE ON TOP OF LONGEST LEG! SWEET! ANGLE PLATE MEASURES 4-1/4" (4.230") WIDE x 3-3/8" (3.360") TALL x 5-1/2" ( 5.490") LONG WITH VEE ON TOP .9" WIDE. HEAVY MFG. PLATE FOR SURE! LEGS ARE 2" AND 1-11/32" THICK!!!! THERE ARE (4) TAPPED 1/4" X 20 HOLES ON TOP OF SAME FACE TO CLAMP OVER THE VEE AS NEEDED. THERE ARE (5) 3/8" X 16 TAPPED HOLES ALSO. FROM THE BACK OF THE LONGEST FACE THERE ARE (4) DRILLED 21/32" (.65") HOLES AND (4) 31/32" (.97") COUNTER-BORES SO YOU CAN BOLT THIS DIRECTLY TO YOUR BRIDGEPORT OR MOORE JIG GRIND TABLE WHICH IS WHERE THIS WAS USED. STEP MEASURES .188" DEEP X 1.373" FROM TOP DOWN VEE LEG. SECOND STEP ON SHORT LEG MEASURES .130" X .499" FROM TOP DOWN. SLOT MEASURES 21/32" WIDE X 1-3/32" LONG TO BOLT DOWN AS NEEDED. EXCELLENT TOOLS WITH LIGHT STAINING FROM STORAGE IN A GERSTNER BOX SOON TO BE LISTED IN OUR STORE. TOOLMAKER MADE IN VERY NICE USED CONDITION. PLEASE TAKE A MINUTE TO LOOK AT THE SUPERSIZE PICS AND ASK ANY QUESTIONS IF NEEDED! BIG SALE NOW (UP TO 50% OFF SOME ITEMS!) ON STORE AND FIXED PRICE ITEMS CHECK OUT SALE ITEMS. (Angle plate stepped w/vee hardened usa tooolmaker wow was posted and is owned by: Dean Levy) |
