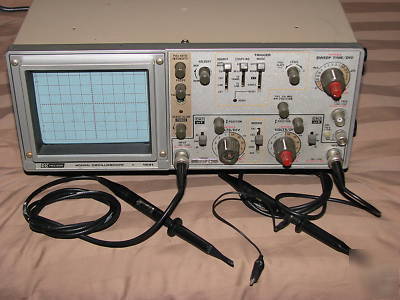

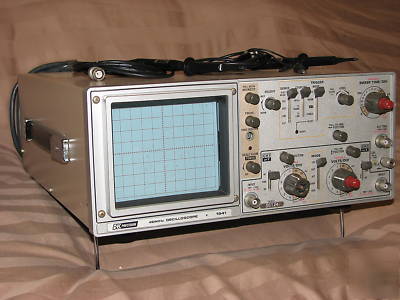

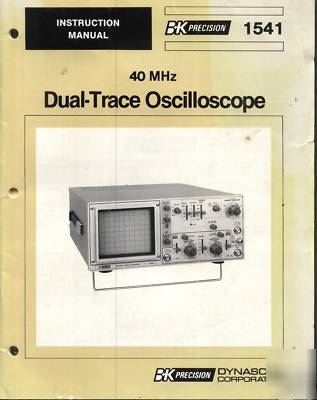

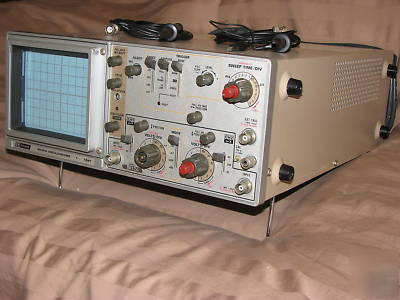

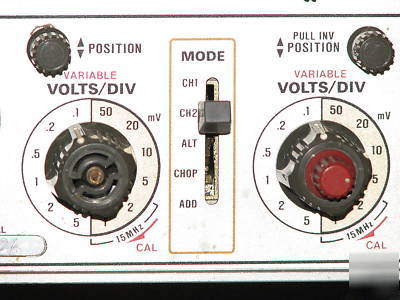

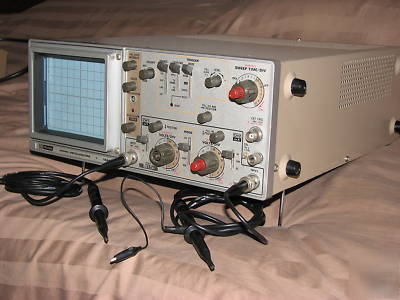

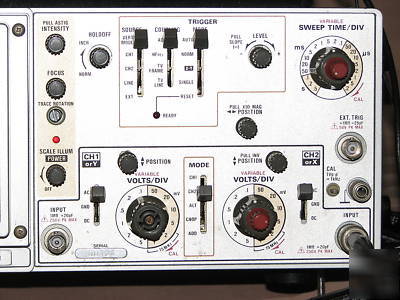

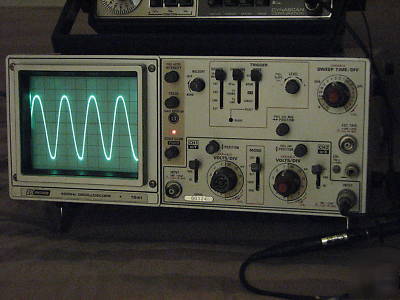

Note: Test Electronic equipment should be used by trained technicians to avoid damage to equipment. This Equipment is operating perfectly, otherwise I would specify. Instruction Manual well illustrated Service Schematic with Parts List Excellent case condition, some small corrosion spots. The only defect is, the calibration control of channel 1 was cutted accidentally moving one TV in my Shop, but the Volts/Div control works fine. In pictures you can see the control. One of the pictures illustrates a test been made with a Sweep-Function Generator sine wave. Schematic Diagram and Parts List Any additional information email me and will try to help you. (B&k 1541 40MHZ dual trace oscilloscope was posted and is owned by: Carolyn Travis) |
