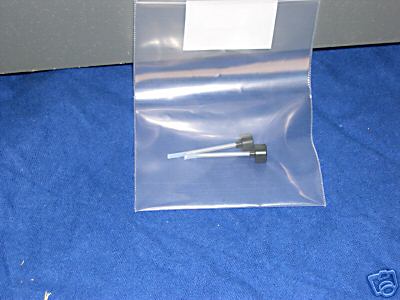

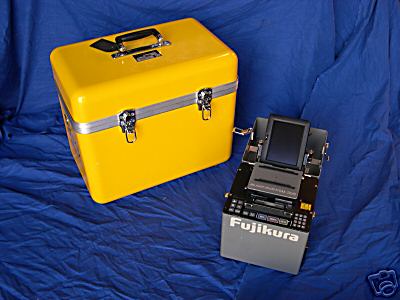

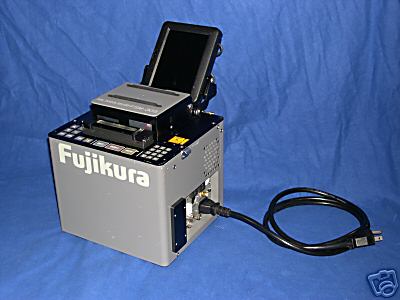

Fujikura Arc Fusion Splicer FSM-30S The unit available comes with yellow transit case, power cord, unit lid, and BRAND NEW ELECTRODES! The Fujikura FSM-30S fusion splicer is the new generation automatic core alignment splicer. The FSM-30S utilizes the direct core monitoring Profile Alignment System (PAS) to achieve ultra low loss and very accurate splice loss estimation regardless of fiber quality or age. While smaller and lighter than previous models, the FSM-30S has increased capabilities and more operating modes. The FSM-30S optical system and microprocessor automatically align the fibers and inspect cleave quality. By using the Eccentricity Correction Function (ECF), the splicer determines the fiber core/cladding eccentricity and automatically compensates for in order to assure precise core alignment of the completed splice. The field-proven performance and reliability of Fujikura core alignment PAS splicers are improved with the new FSM-30S. * Arc power is optimized automatically by special arc power analysis software. * Automatic compensation for temperature and humidity variation, as well as for atmospheric pressure/altitude. * Operating modes provided to create an in-line attenuator. * Mode field diameter compensation program (i.e., to splice Erbium doped fiber to DS.) * Splicing modes added for cutoff-wavelength-shifted (CS) fiber, in addition to SM, DS, and MM fiber. * Built-in tube heater is programmable for heating profile and sleeve length. * Menu driven for all functions including maintenance, tube heater programmability and other options. * Optional PCMCIA card to increase splice data storage. Single Fiber: SM @ 1310 nm, DS @ 1550 nm, CS @ 1550 nm, MM, Erbium Doped fiber Splice Loss: Typical 0.02dB with SM fiber, 0.01dB with MM, and 0.05dB with dispersion shifted Cleaved Fiber End Angle Alarm: Programmable up to 5º Viewing Method: CCD Camera with high resolution 4" LCD monitor with excellent viewability in direct sunlight Memory: 100-splice data sets with internal memory. (Increased to 1600 data sets with optional 64 KB PCMCIA memory card and 24,000 splice data sets with 1MB memory card. Operating Temperature: -10ºC to +50ºC Power Supply: 85 to265 VAC (50/60 Hz) and 10 to 15 VDC Dimensions (W X D X H): 21cm x 18.7cm x 17cm (8.3" x 7.4" x 6.7") (Fujikura arc fusion splicer fsm-30S was posted and is owned by: Roxie Burks) |
Roxie-Burks@chicagopartsnetwork.com (Roxie Burks) for more information.
