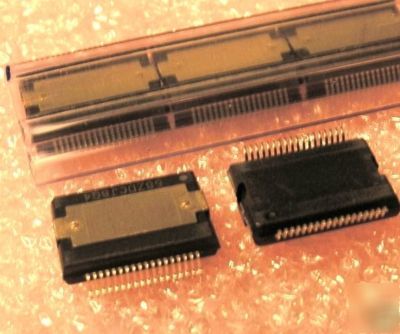

315W Mono BTL Digital Audio Power Amplifier Power Stage 110-dB SNR (A-Weighted with TAS5518 modulator) Supports Pulse-Width Modulation (PWM) Frame Rates of 192 kHz to 384 kHz Resistor-Programmable Current Limit Integrated Self-Protection Circuit Including: Over Temperature Warning and Error Short Circuit (OC) Protection Power-On Reset (POR) to Eliminate System Power-Supply Sequencing Thermally-Enhanced Package DKD (36-pin PSOP3) EMI Compliant When Used With Recommended System Design Error Reporting 3.3-V and 5-V Compliant The TAS5261 is a high-performance, integrated mono digital amplifier power stage designed to drive 4O to 8O speakers with low harmonic distortion. This system requires only a simple, passive demodulation filter to deliver high-quality, high-efficiency audio amplification. The TAS5261 has complete protection circuitry integrated on chip, safeguarding the device and speakers against fault conditions that could damage the system. These protection features are short-circuit protection, overcurrent protection, undervoltage protection, and a loss of pulse-width modulation (PWM) input signal (PWM Activity Detector). (TAS5261 digital audio power amp chip 315W btl mono (X2) was posted and is owned by: Glen Jimenez) |
