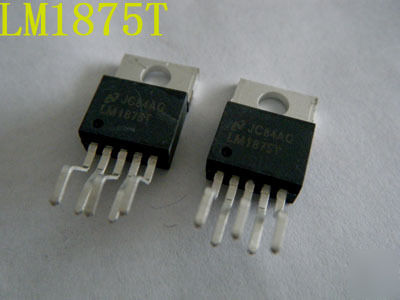

* Up to 30 watts output power * Low distortion: 0.015%, 1 kHz, 20 W * Wide power bandwidth: 70 kHz * Protection for AC and DC short circuits to ground * Thermal protection with parole circuit * High current capability: 4A * Internal output protection diodes * Plastic power package TO-220 The LM1875 is a monolithic power amplifier offering very low distortion and high quality performance for consumer audio The LM1875 delivers 20 watts into a 4 or 8 load on 25V supplies. Using an 8 load and 30V supplies, over 30 watts of power may be delivered. The amplifier is designed to operate with a minimum of external components. Device overload protection consists of both internal current limit and The LM1875 design takes advantage of advanced circuit techniques and processing to achieve extremely low distortion levels even at high output power levels. Other outstanding features include high gain, fast slew rate and a wide power bandwidth, large output voltage swing, high current capability, and a very wide supply range. The amplifier is internally compensated and stable for gains of 10 or greater. * High performance audio systems (New 10,LM1875T LM1875 20W audio power amplifier miao was posted and is owned by: Kellie Blanchard) |
