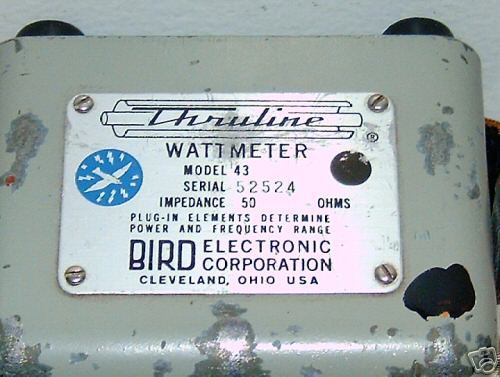

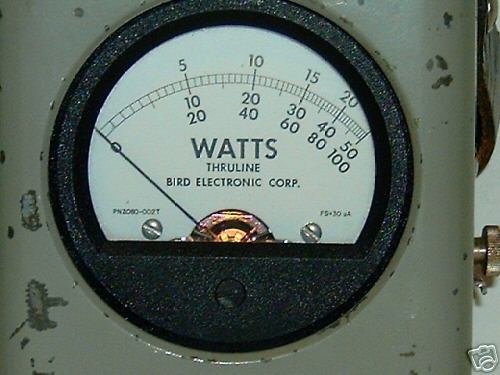

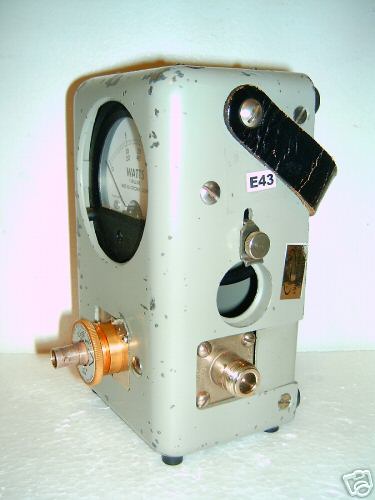

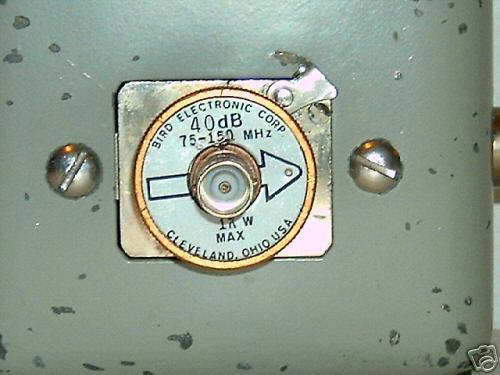

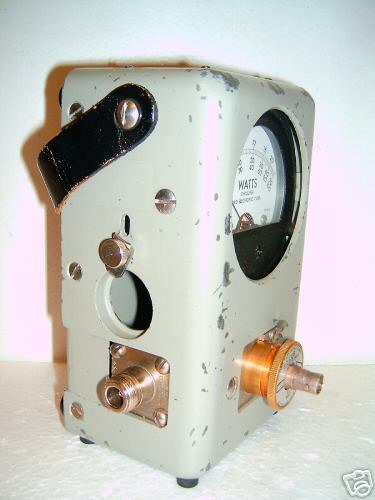

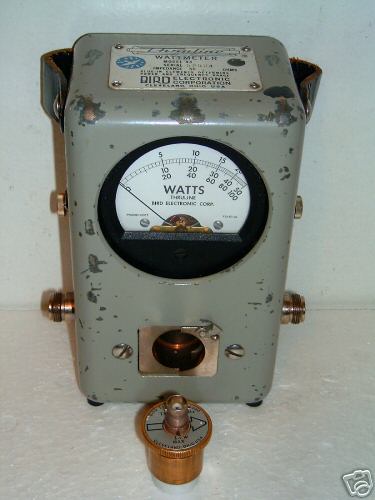

Bird 43 THRULINE Directional Wattmeter, 1 Slug Element (as shown in photo) NOTE:The following information on this item was pulled from the internet and should be verified by the manufacturer. Bird's Famous General Purpose Thruline® Wattmeter Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 KW. Uses industry standard Bird elements with space to store 2 additional within the meter housing. Rugged metal housing for the most demanding environments. Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements. The Bird Model 43 THRULINE® Directional Wattmeter is a field-proven portable, insertion-type instrument designed to measure both forward and reflected CW power in coaxial transmission lines under any load condition. With a full-scale accuracy of ± 5%, it accurately measures RF power with low added VSWR and insertion loss. QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the Model 43 amazing flexibility. Two extra elements can be stored in the housing, one on each side. The Model 43 is easy to use and simple to service in the field. QC Type (Female N normally supplied) 450 kHz to 2.7 GHz (depending on elements) with N connectors 1.05 max. to 1000 MHz 6 7/8" H x 5 1/8" W x 3 5/8" D (175 x 130 x 92 mm) 100 mW to 10 kW using Bird Plug-In Elements Item is in good physical condition with a few minor scrapes and scratches. Unable to test. slug element may or may not be compatible with wattmeter. Comes as pictured only. Our reference #E43 (Bird 43 thruline directional wattmeter slug element e was posted and is owned by: Dena Murphy) |
Dena.murphy@chicagopartsnetwork.com (Dena Murphy) for more information.
