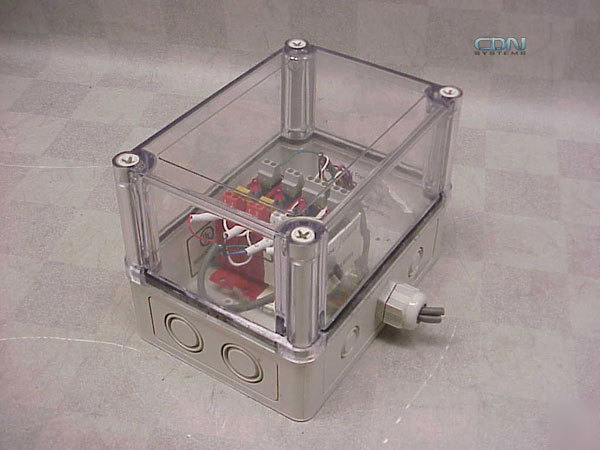

Vynckier 7x5x5 Enclosure + 4 Gordos I/O Module I/ODC24 * 2 - Gordos-Crouzet Digital DR-Input Module * DIN-Rail Mountable Input Module * Single Point Input Module * DC Input for 3.3 to 32 V * UL Recognized (E46203)/CSA Certified (38595) * 4kV Optical Isolation * Input and Output Barrier Strips accept 14-28 AWG wire * Nominal Voltage: 5 - 28 VDC * Maximum Voltage: 32VDC/VAC * Minimum Voltage: 4.0 VDC/VAC * Maximum Current: 34 mA * Drop-out Current: 1 mA * Allowable Current: 1.5 mA * Voltage for No Output: 2 VDC * Nominal Logic Supply Voltage: 24 VDC * Maximum Logic Supply Voltage: 30 VDC * Minimum Logic Supply Voltage: 20 VDC * Maximum Logic Supply Current: 28 mA * Maximum Logic Supply Leakage Current: 10 A * Maximum Voltage: 30 VDC * Maximum Current: 50 mA * Maximum Leakage Current: 10 A * Maximum Voltage Drop: 0.2 VDC * 2 - Gordos-Crouzet Digital DR-Output Module * DIN-Rail Mountable Output Module * UL Recognized/Horse Power Rated (E46203)/CSA certified (38595) * 4 kV Optical Isolation with LED Indicator * Nominal Voltage: 24 VDC * Minimum Voltage: 18 VDC * Maximum Voltage: 32 VDC * Drop-Out Voltage: 1 VDC * Maximum Current: 13 mA * Nominal Line Voltage: 5 - 48 VDC * Minimim Line Voltage: 3 VDC * Maximum Line Voltage: 60 VDC * Max Off-State Voltage: 60 VDC * Max Off-State Leakage: 10 A * Maximum Rated On-State Current: 3 A * Min On-State Current: 10 mA * Max Surge Current: 5 A * On-State Voltage Drop: 1.5 V * 1 - Vynckier Miniature Enclosure with Clear Cover * Outer Dimensions (H x W x D): 7" x 5" x 5" (Vynckier 7X5X5 enclosure + 4 gordos i/o module i/ODC24 was posted and is owned by: Terry Keith) |
Terry-Keith@chicagopartsnetwork.com (Terry Keith) for more information.
