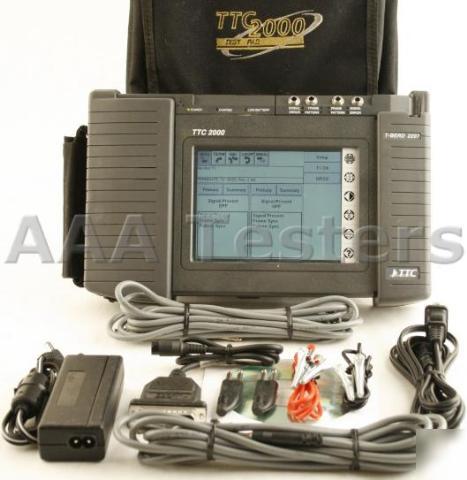

* TTC Test Pad 2000 Communication Analyzer * T-BERD 2207 Field Service Module With Options: * TTC P/N:80-30758-01 Printer Cable * (2) ADC PJ746N Termination Plugs * Alligator Clip Test Leads (1 Red - 1 Black) TTC 2000 Test Pad with TTC T-BERD 2207 Wireless Communications Analyzer Module TTC T-BERD 2207 Wireless Communications Analyzer The market leader in innovative test solutions, TTC, has once again set a new standard for testing networks and the services they provide. Our development team has created a revolutionary new product for testing digital wireless networks that looks, feels, and performs like no other test instrument available today the T-BERD 2207. Designed to help you maintain existing PCS-1900 (GSM) systems and install new revenue-producing services, the T-BERD 2207 is the unique solution your network demands. Fast, simple, and intuitive just touch an icon on the screen, and the T-BERD 2207 instantly provides your test results. This easy operation reduces test time, makes your technicians more productive, and enables you to minimize or even eliminate training costs. The T-BERD 2207 is the first application module for our new hand-held TTC 2000 platform. With an innovative touch-screen interface, compact modular architecture, powerful battery-powered operation, and two flexible PCMCIA expansion slots, all in a rugged, field-tested package, the TTC 2000 platform defines the next generation in test. * It s easy for your technicians to use. The T-BERD 2207 s efficient design incorporates a large, icon-driven display. Touch an icon to configure and initiate a test, and the T-BERD does the rest. * Protect your investment and maximize your test budget the unique modular architecture of the new TTC 2000 platform offers unprecedented upgrade potential * A state-of-the-art nickel-metal-hydride (NiMH) battery offers you increased battery life at a lower weight than other battery technologies * Take advantage of a wide range of PCMCIA memory and communication products. The T-BERD 2207 includes a standard dual PCMCIA interface connection compatible with two Type II or one Type III cards * Sturdy, yet lightweight, the T-BERD 2207 is designed to meet your requirements for field-ready ruggedness The applications-oriented graphical user interface (GUI) is based on a powerful combination of touch screen software and the largest full VGA-compatible gray-scale LCD display technology available in any product of its kind. No wireless test instrument has ever been this simple or elegant. Testing is automatic with one touch, your technicians can have the information they need and be on their way to the next test site. The T-BERD 2207 utilizes technology advances in low-power design, high-integration ASICs, and state of- the-art memory and logic devices to minimize size and maximize battery life. You ll get four hours of uninterrupted battery operation on each charge. We understand the environment you work in, and we know that you need to have tough, ruggedly built test equipment. The T-BERD 2207 will never let you down. The mechanical enclosure is protected by a rubber overmold to absorb the impact of unexpected falls. In addition, we engineered a custom mounting to house our VGA LCD and touch screen digitizer to protect against unavoidable impacts and mechanical twists. Every instrument is durability-tested to stand up to heat, cold, and vibrations. We guarantee the performance of your instrument with an industry-leading three-year warranty. The T-BERD 2207 s TTC 2000 platform sets a new standard for flexibility and future growth potential for lightweight, hand-held test instruments. The T-BERD 2207 application module separates easily from the TTC 2000 platform so you can plug in other applications as your testing needs change. Two PCMCIA slots add to your T-BERD 2207 s power and flexibility. Plus, the standard dual PCMCIA interface makes it easy to download future software upgrades the T-BERD 2207 is designed with nonvolatile memory, so the loss of an upgrade card does not put you out of service. Expandable DSP- and RISC-based Architecture The DSP-based architecture of the T-BERD 2207 provides built-in growth potential for future signal analysis enhancements. Plus, the core processing functionality is managed by a RISC design, protecting your investment against changing standards. Installing and maintaining wireless networks becomes more challenging every day. The wireless industry is changing fast, with new technology deployments, new competitors, and new network service offerings. The first wireline test product that specifically targets the needs of digital wireless network field technicians, the T-BERD 2207 is the efficient solution your digital wireless network demands. Use the dual-receiver capability of the T-BERD 2207 to perform in-service monitoring of both the transmit and receive signals simultaneously. Determine and verify the signal delays and mismatches between the switch and remote equipment using the advanced timing analysis features of the T-BERD 2207. Troubleshoot and isolate physical-layer problems associated with data or other advanced service offerings without taking unaffected channels out of service. Verify proper circuit operation throughout the wireless network. The T-BERD 2207 functions include full in-service and out-of service bit error rate and signal analysis features. The Right Touch for Wireless Testing The touch-screen interface simplifies complex test applications and results information, eliminating configuration errors and misdiagnosis of test results. Your field technicians will be able to test effectively the first time and every time. The result is increased user efficiency and productivity and less lost revenue from network down time. Monitor and perform physical-layer BERT testing in both directions of a circuit simultaneously. Identify and sectionalize leased-line circuit problems from switch and base station network equipment faults. The T-BERD 2207 provides a full range of physical-layer, signal, and timing test functionality to ensure proper performance from your T1 network connections. Include several of the industry recommended stress patterns in your circuit acceptance criteria to verify proper network performance for compressed voice signals. The stress patterns emulate signals similar to those derived from digital compression techniques. Monitor the voice quality of your network with the internal channel monitor functionality of the T-BERD 2207. Verify individual channels and monitor data or signaling bits without disrupting network traffic. Transmit and measure tones on an individual PCM channel basis utilizing the T-BERD 2207 s in-service channel access capabilities affecting only the channel under test and without impacting other revenue earning channels. Verify proper network routings and signal delays to ensure all channel signals are terminated properly and with the correct timing. Isolate single location faults on circuits with multiple location terminations a growing application in rural locations or areas on the edge of service deployment. PCS-1900 (GSM) VF Channel Monitor Verify proper voice quality on compressed sub channels of new PCS-1900 (GSM) digital networks. Isolate and sectionalize problems between the switch and base station network equipment with this unique functionality of the powerful T-BERD 2207. (Ttc jdsu acterna 2000 test pad t-berd 2207 tberd was posted and is owned by: Willie Stephens) |
W-Stephens@chicagopartsnetwork.com (Willie Stephens) for more information.
