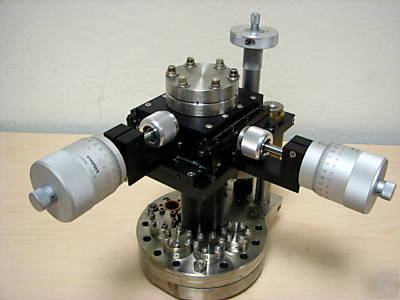

This is a Thermionics 3-Axis Vacuum Precision Manipulator 5 Ports EC-1.39-2, standard model EC-1.39-2, with optional 6.0" base flange with 5 mini-ports The EC series manipulators provide high precision positioning at minimum cost. They feature precision preloaded cross-roller stage control with preloaded micrometer-to-stage coupling. The XY guide system is made of hardened steel. Bakeable to 200 C fully assembled; no castings used in construction Hardened steel X and Y cross-roller guides Dual 0.75" O. D. hardened stainless steel Z guide rods Stainless steel only material exposed to vacuum EC-1.39-2, standard model EC-1.39-2, with optional 6.0" base flange with 5 mini-ports Motion Specifications X axis Resolution: <0.0001" (0.0025 mm) readability with optional large micrometers (only) Repeatability <0.00015" (0.0038 mm) Backlash <0.00015" (0.0038 mm) Y axis Resolution: <0.0001" (0.0025 mm) readability with optional large Repeatability: <0.00015" (0.0038 mm) Backlash: <0.00015" (0.0038 mm) Resolution: <0.0005" (0.013 mm) Repeatability: <0.0005" (0.013 mm) Rigidity: <0.001" 5 lb. load change 0.5" X and Y travel, circular pattern, preloaded micrometer-to-stage coupling, Micrometers bakeable to 200 C 2", 4" and 6" Acme Z travel, 0.100"/turn knob adjust 2.75" O. D. traveling flange, tapped (Thermionics x y&z vacuum precision manipulator 5 ports was posted and is owned by: Carolina Briggs) |
