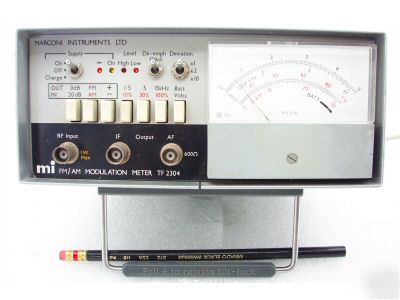

Marconi TF2304 FM/AM Modulation Meter ** Carrier Frequency Range: 9 to 12.5 MHz and 18 to 1000 MHz ** FM Deviation in Eight Ranges: 1.5 to 150 kHz FSD ** AM Depth in Three Ranges: 10, 30 and 100% Carrier Frequency Range: 9 to 12.5MHz and 18 to 1000MHz with automatic tuning and automatic level setting. Maximum time to reading: approximately 5 s Sensitivity: Better than 50mV up to 600MHz, better than 100mV up to 1000MHz Maximum Working Input: 1V RMS extending to 7V with switchable 20 dB nominal pad Maximum Safe Input: 1W (7V into 50 ohm) continuous Switchable Attenuator: 20 dB nominal Input Impedance: 50 ohm nominal Level Indication: Two LED lamps indicate if the input level is too low or too high Deviation Ranges: Eight ranges (using x2 and x10 switches) giving full scale peak deviations of 1.5, 3, 5, 10, 15, 30, 50 and 150 kHz. Positive or negative deviation indication is selected by a switch Modulation Frequency Range: Over the range 50Hz to 9kHz Modulation Depth Range: Full scale indication 10%, 30% and 100% (usable up to 95%). Peak or trough indication selected by a switch Modulation Frequency Range: Over the range 50Hz to 9kHz Level: 100mV EMF nominal from 1kohm source Demodulated AF output available at front panel socket Level: 1mW nominal into 600 ohm with meter at FSD 3 dB bandwidth: Nominally 20Hz to 15kHz BNC sockets for RF input, IF output and AF output IF THE PICTURES DOES NOT APPEAR IN ITS GIVEN SPACE, RIGHT CLICK ON THE SPACE AND SELECT SHOW PICTURE. CHECK OUT OUR STORES FOR MORE QUALITY MERCHANDISE AT A FRACTION OF RETAIL PRICE MrPowertech's Test Equipment Store VISIT OUR HEWLETT PACKARD STORE MrPowertech's Hewlett Packard Store VISIT OUR TEST AND MEASUREMENT STORE MrPowertech's Test & Measurement Store (Marconi TF2304 fm/am modulation meter was posted and is owned by: Fran Patton) |
