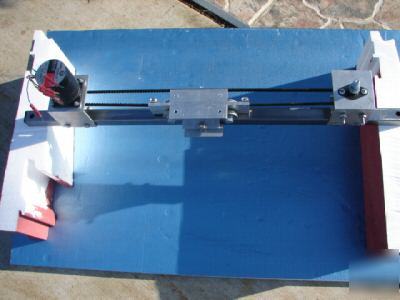

Linear Actuator with 24" of trolley travel, and a 2-1/4" by 4" mounting plate with 4 mounting holes 1/4-20 threads. This actuator mounts on each end with a 3/8" through hole drilled through the one inch square steel tubing main frame top to bottom, or with our mounting leggs and feet shown in the actuator section of the store. This actuator can be driven by any NEMA 23 stepper motor (not included) driving a 0.20XL timing belt with a 15 tooth timing pulley (included) mounted to the motor. Overall dimension outside to outside is 42"; top to bottom 7"; width 5". The actuator trolley rides on six flanged ball bearing wheels.
(Cnc linear actuator 24" slide cnc stepper motor drive was posted and is owned by: Steve Dyer) |
SDyer@chicagopartsnetwork.com (Steve Dyer) for more information.
