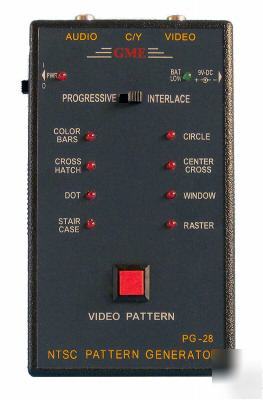

Manufacturer Website: http:// /index.html Photobucket - Video and Image Hosting The PG-28 features a wide selection of popular video patterns including Color Bars, Crosshatch, Dot, Staircase, Circle, Center Cross, Window, and Raster for accurate and comprehensive TV troubleshooting and testing. It also supports both progressive and interlace scanning system. The PG-28 features composite video and S-video connectors for video output and 1kHz audio tone for audio troubleshooting. Color Bars: White, yellow, cyan, green, magenta, red, blue, and black. Crosshatch: 15 vertical x 11 horizontal white lines on black raster. Dot: 15 vertical x 11 horizontal white dots on black raster. Stair Case: Linear staircase signal with 5 equal steps from black to white. Circle: Circle with 1 x 1cross hatch. Raster: White, red, green, blue, yellow, cyan, magenta and black. Window: White window on black background. Center Cross: Centering box on the screen SCANNING SYSTEM: Interlace and Progressive. COMPOSITE VIDEO: 1.0V p-p into 75 Ohms. S-VIDEO: Chrominance output 0.6v p-p into 75 ohms Luminance plus Sync Output: 0.8V p-p into 75 Ohms Dimensions: 1.5†x 3.8†x 5.7†(New ntsc video / audio generator composite s-video out was posted and is owned by: James Potter) |
