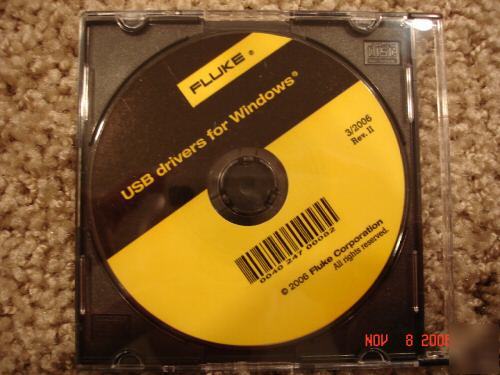

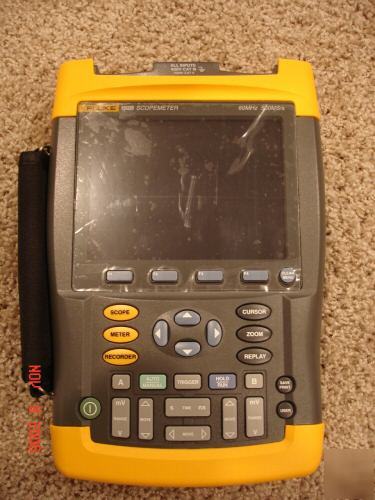

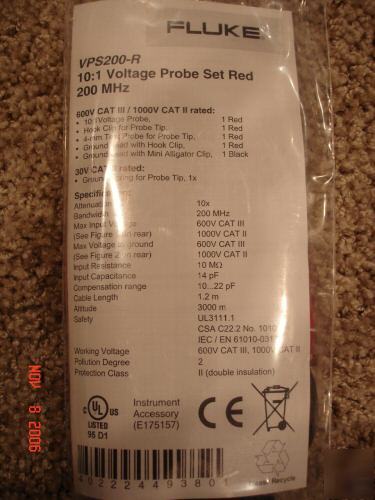

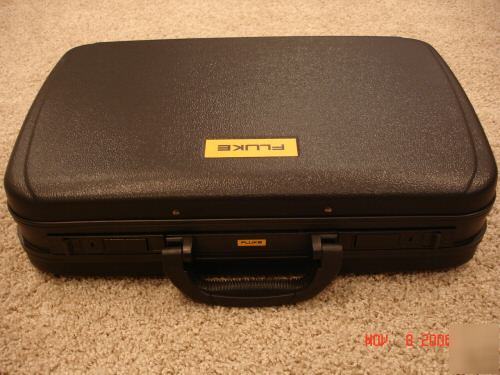

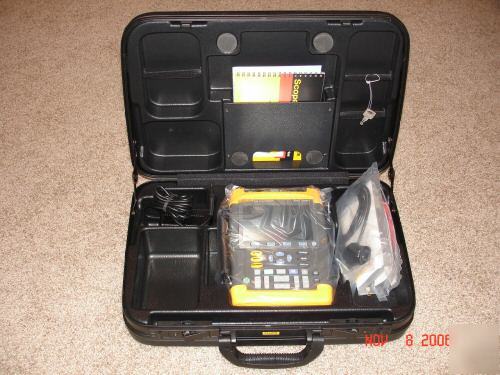

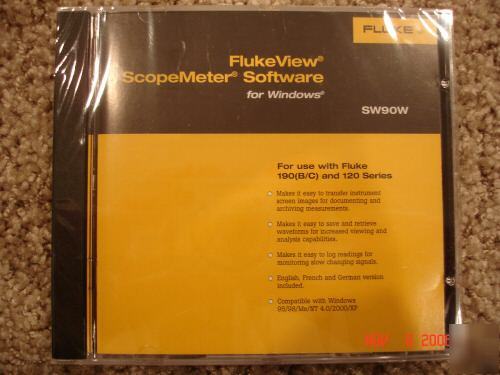

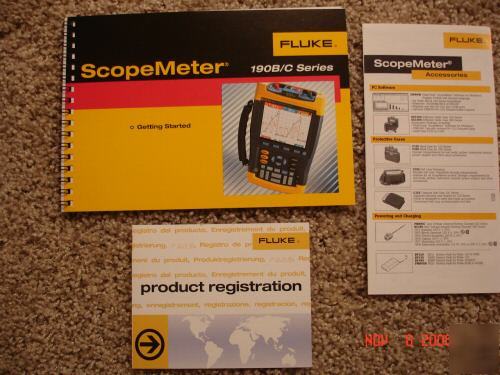

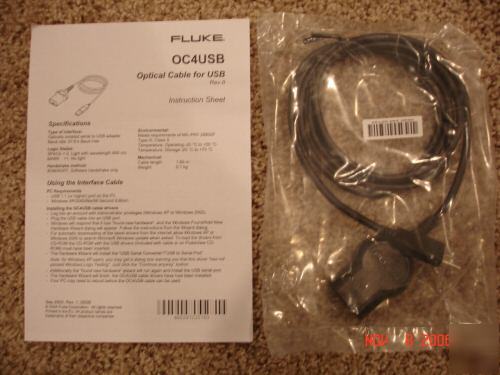

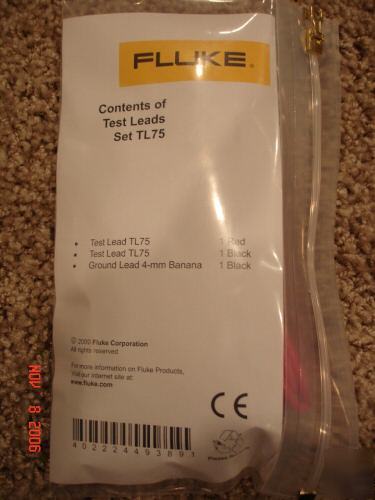

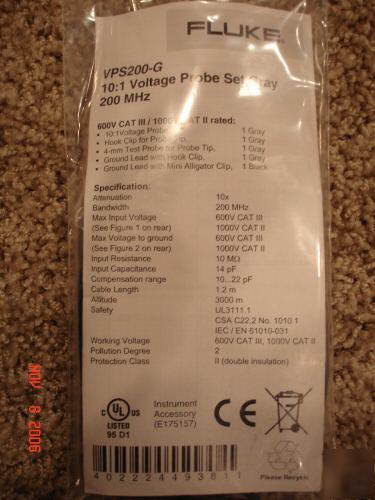

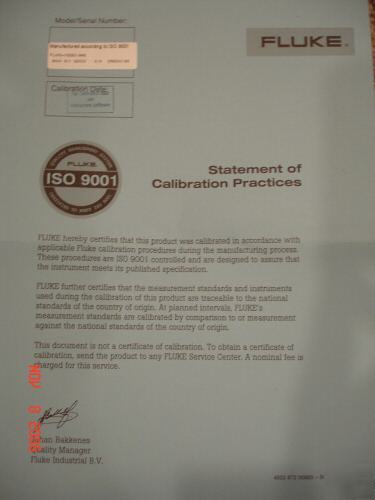

New – In Box with Calibration THIS METER/KIT RETAILS FOR $2,400 !! The following items are included in the kit: · Hard carrying case with (2) lock keys · ScopeMeter 190B/C Series Getting Started Manual (with CD) · Optical cable for USB connection to computer, with FlukeView ScopeMeter software CD-ROM · Set of black & red test leads · 10:1 Voltage probe set, gray (200 MHz) · 10:1 Voltage probe set, red (200 MHz) · Real-time sample rate: 500 MS/s · Inputs & Digitizers: 2 plus external / DMM input · Independently Floating Isolated Inputs: Up to 1000 V between inputs, references and ground · Timebase Range: 10 ns - 2 min/div · Input Sensitivity: 5 mV-100 V/div · Glitch Capture: 50 ns (5 µs/div - 1 min/div) · Scope Measurements: Cursor 7; Automatic 30 · Maximum Record Length: ScopeRecord mode: 27,500 pts per input; Scope mode: 3,000 pts per input · Display: 144 mm full monochrome LCD with fast update rate · Waveform Compare: Waveform reference only · RS-232 Interface: Optically isolated via optional PM9080/OC4USB for interfacing to Printer or PC With up to 200 MHz bandwidth, 2.5 GS/s real-time sampling, and a deep memory of 27,000 points per input, this unit is ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery-powered instrument. With a maximum real-time sampling rate of 2.5 GS/s per input, and 400 ps resolution, you can see what really happens. Each input has its own digitizer, allowing you to simultaneously acquire two waveforms and analyze them with the highest resolution and detail. You can also look back in time with a touch of the replay button. The ScopeMeter continuously memorizes the last 100 screens, automatically capturing them for replay at your command. At any moment you can "freeze" these screens and scroll through them-picture by picture- or replay them as a "live" animation. The sensitive ScopeRecord (TM) memory stores 27,000 points per input, for high resolution recording of waveform events up to 48 hours. It captures fast intermittents and glitches as short as 50 ns. In Trendplot (TM) "paperless recorder" mode you can plot the min., max., peak, and average measurement (DMM or Automatic Scope) values over time up to 22 days. Waveform reference allows an acquired trace to be stored and designated as a reference trace for visual comparisons. NOTE: For full product specifications visit the following website http://us.fluke.com/usen/products/Fluke+190.htm?catalog_name=FlukeUnitedStates&Category=SCM(FlukeProducts) (New fluke 192B scope meter with extras & calibration was posted and is owned by: Andrea Fowler) |
afowler@chicagopartsnetwork.com (Andrea Fowler) for more information.
