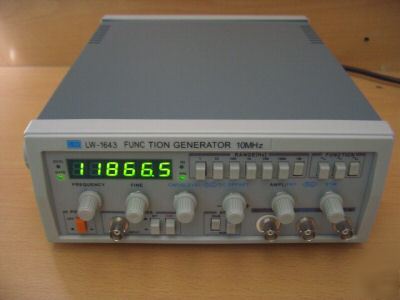

"10MHZ Digital Display Function Generator With Multiple Waveforms, TTL/CMOS Output, Frequency Counter Engineer , Electric Lab, Production Line, Audio and Teaching Purposes " HIGH ACCURACY & RELIABILITY WITH WIDE FREQUENCY / OUTPUT RANGE !!! . 0.1Hz to 10MHz Frequency Range; . Voltage control frequency ( VCF) capability; . TTL/CMOS and output synchronous output; . Frequency range: 0.1Hz to 10MHz with fine tune; .DC offset voltage: 0 to +/- 10V contineously adjustable; . Symmetry Range: 90:10 - 10:90; . Rising / falling edge of square: less than 30nS; . Distortion: < 1% ( 10Hz to 100KHz ); - 0.1 to 100KHz , less than +/- 0.5dB; - 100KHz to 2MHz, less than 1dB; - TTL (Low: <0.4V , high: <3.5V ) - CMOS (low: <0.5V, high: 5V to 14V contineous variable ); - Max. Amplitude: >=20V p-p ( open circuit ); - Output attenuation: 0dB / 20dB / 40dB / 60dB and fine tune; . Output voltage: -5V to 0V +/-10%; . Max volt-control rate: 1000:1; . Measuring range: 1Hz to 10MHz; . Input impedance: >=1M ohms / 20pF; . Accuracy: less than 0.003% +/-1digit; . Line voltage: 220V / 110V mains switch; . Dimension: 310 x 230 x 90mm; . Accessories: english manual / power cord/ test leads Don't hesitate to ask if you have inquiry. (New 10MHZ signal/ function generator,audio,freq counter was posted and is owned by: Minnie Soto) |
M_Soto@chicagopartsnetwork.com (Minnie Soto) for more information.
