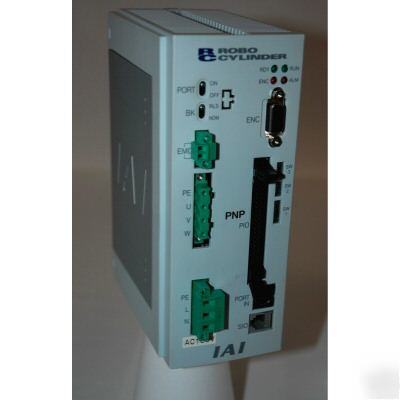

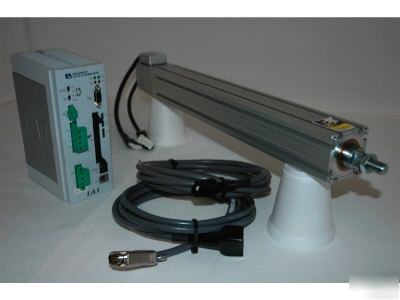

IAI: RCS-RA55-1-60-GN-M-300-S Rod type ROBO Cylinder Includes RCS-C-RA35-1-60-1-PNP Servo Control & Cables This ROBO cylinder employs ball screw, linear guide, and AC Servo motor to position the rod into to 16 different precise repeatable locations and is able to maintain that position. The advantage is that it does not require air to operate and moves to precise positions. Simply input the desired position locations. Motor: 100Watt with incremental encoder, Payload: 25KG Horizontal, 5 KG vertical, 55mm Square Body, 507mm body length, 50.5mm rod protrusion, Cable: CB-RCB-MA030, 3m Cable: CB-RCD-PA030. Supports DeviceNet and CC-Link stds AC Servo Controller specs: 90-125VAC input power, 165VA Demensions: 83.6mm W x 194mm H x 129mm D. Check out this model on the Intelligent Actuator web site: http:// /rcs_rod.php (Iai: rcs-RA55-1-60-gn-m-300-s rod type robo cylinder was posted and is owned by: Brian Blanchard) |
b_blanchard@chicagopartsnetwork.com (Brian Blanchard)
for more information.
