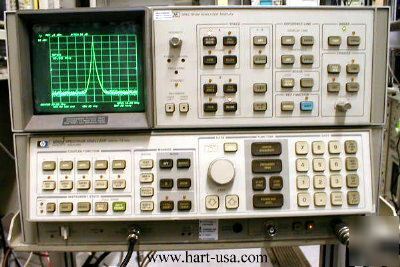

The 8568B high-performance, 100 Hz to 1.5 GHz, microwave spectrum analyzer for bench and ATE use. The exceptional frequency stability of the 8568B permits measurements with a 10 Hz bandwidth. This narrow resolution bandwidth yields noise levels as low as -135 dBm. Excellent frequency stability, sensitivity, and frequency reference accuracy combine to allow very accurate measurement of small signals in the presence of large ones. Multiple traces can be displayed to measure residual FM or drift, or to conduct real-time surveillance over a wide frequency range. Analyzer control settings can be saved in non-volatile memory. Complex measurement routines can be created on an external controller, stored in the analyzer's user RAM, and executed using a single custom softkey. By adding measurement accessories and options, the 8568B fits into many applications, including electromagnetic compatibility (EMC) testing, automated broadband signal surveillance, and component stimulus-response testing. * Frequency range 100 Hz to 1.5 GHz * Resolution bandwidth 10 Hz to 3 MHz in a 1, 3, 10 sequence * Exceptional frequency stability and sensitivity * Up to four trace markers with amplitude and frequency readout * Stores traces, instrument states and custom downloadable programs (DLPs) This is a A to B conversion! - Nice clean unit with all connecting cable, a copy of the operations manual, new calibration (NIST-traceable w. Cert.) on Jan. 10, 2007 and 30-days waranty. (Hp 8568B spectrum analyzer - 100 hz to 1.5 ghz was posted and is owned by: Elmer Fry) |
elmerfry@chicagopartsnetwork.com (Elmer Fry) for more information.
