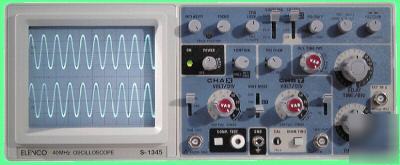

Channel - Delayed Sweep Component Tester, Beam Find, Dual Time Base Component Tester (S-1345 only) 5 Digits 0.36" Red LED Display. Sine, Square, Triangle, 3 Waveforms. Max. Output: 20Vpp (no load), 10Vpp (50Ω Load) Vertical Amplifiers (CH 1 and CH 2) Horixontal Amplifier (continued) Sensitivity: 5mV/div - 5V/div (x1 mode). 1mV/div - 1V/div(6MHz, -3dB)(x5 mode). Attenuator: 1-2-5 sequence, 10 step attenuator plus vernier control. Input Impedance: 1MΩ ±2%, 25pF ±10pF. Max Input Voltage: 400V (DC + AC peak). Operating Modes: CH1, CH2, DUAL(ALT or CHOP) and ADD. Chop Frequency: Approximately 500kHz. Algebraic Addition: CH 1 + CH 2, CH 1 - CH 2. X-Y Phase Difference: Approximately 3° at 50kHz. X-Y Mode: Switch selectable using X-Y switch Accuracy: Y axis±3%, X axis±6% Sweep Display Mode: Main, Mix, Delay (S-1345 only). Hold Off Time: 5:1 continuously variable.(0.1µs/div) Sweep Speed: 0.1µs/div -2s/div in 1-2-5 sequence, 23 steps Variable Time Control: 5:1, uncalibrated, continuously variable between steps. 10X, ±10%, extend sweep speed up to 10ns/div. Component Tester (S-1345 only) Sweep Speed: 0.1µs/div - 2s/div in 1-2-5 sequence, 23 steps. Sweep Magnification: 10X, ±10%, extend sweep up to 10ns/div. Delay Time Position: Variable control to locate desirable waveform for extending. Test Voltage: Max. 6Vms (open circuit). Test Current: Max. 11mA (shorted). Test Frequency: Line Frequency. Components: Capacitor, Inductor, Diode, Transistor, Zener etc. Trigger Coupling: AUTO, NORM, TV-V, TV-H Trigger Source: CH 1, CH2, ALT, LINE, EXT. Output Level: 100mV/DIV (no load). 50mv/div (50Ω load). Bandwidth: 20Hz - 15MHz (-3dB). CRT: Type: Rectangular with internal graticule. Adjustable graticule illumination (S-1345 only). Display Area: 8 x 10 div (1div = 1 cm). Accelerating Voltage: 2.1kV.(S-1340) 12kV (S-1345). Z Modulation (S-1345only): Positive TTL signal, low level blank intensity at any intensity, high level unblank any intensity. Trace Rotation: Electrical, adjustable front panel. Calibrator: Square wave 1kHz, ±10%, 2Vpp±3% Power requirements: 115V, 230VAC±10%, 50/60Hz. Power Consumption: Approximately 40 watts Dimensions: 5 1/4" (H) x 12 3/4" (W) x 15 5/8" (D). New Weight: 17lbs 3.2oz (7.8kgs) Accessories Supplied: Two x1, x10 probes, schematic diagram & parts list, AC power cord, spare fuse and dust cover. (40MHZ dual trace, delayed sweep: model s-1345 was posted and is owned by: Walter Washington) |
