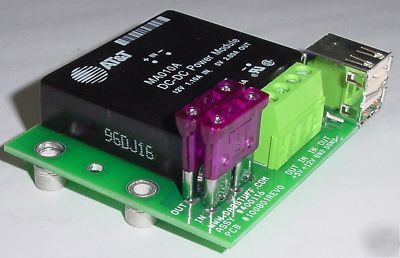

AUTOMOTIVE 5 Volt 2 Amp Switching Power Supply with USB Power - PANEL MOUNT Qty 1 #400116 +5vdc 2 Amp Switcher GREAT FOR AUTOMOTIVE and MOTORCYCLES Easy Connect & Disconnect. If you need to charge or operate your 5 volt Electronic accessory on your 12v vehicle, this is the Switching Power Supply that you want. What makes this Automotive Switching Power Supply great is it's wide range of input voltages while maintaining a steady +5vdc @ 2 amps. You can plug up to 2 USB Cables into the USB Connector or tap the +5vdc power on the screw terminal. This unit has excellent transient protection for your electronics because the output +5vdc is totally isolated from the input. The result is that any voltage spike remains isolated from the input. The chasis ground of the input is not connected to the ground of the output. Both input and output are fused with 3 amp ATC fuses. ( This unit comes in 2 mounting configurations, Din Rail Mount and Panel Mount. The panel mount includes Qty 4 standoffs, Qty 4 4-40 3/4" screws and Qty 4 hex nuts. The Din Rail Mount comes with 2 Din Rail Mount adapters for easy Din Rail Installation. This ad is for the PANEL MOUNT version. ) SWITCHER POWER SUPPLY # d-400116 It uses qty 2 - 3 amp Fuses, 1 in and 1 out. 10 - 18 vdc @ 1.1 amp Input to 5 vdc 2 amp Output. The USB connector only has +5 vdc and ground connected, this allows a standard USB cable to be used for charging or operating your 5 volt devices. Plug In and charge USB Devices here MA010-Series Power Modules: 10 Vdc to 15 Vdc Inputs; 10 W * (2.00 in. x 1.60 in. x 0.50 in.) * High efficiency: 78% 84% typical * Operating ambient temperature range: 10 C to +50 C, no derating * Printed-circuit board mountable * Meets FCC Class A requirements * UL* Recognized, CSA Certified, and VDE Licensed Description of the DC-DC Power Module The MA010A, B, C, BK, and CL Power Modules are dc-dc converters that operate over an input voltage range of 10 Vdc to 15 Vdc and provide precisely regulated 5 V, 12 V, 15 V, 12 V, and 15 V outputs, respectively. The outputs are isolated from the inputs, allowing versatile polarity configurations and grounding connections. The modules have maximum power ratings of 10 W with a typical full-load efficiency of over 80%. The modules are PC-board-mountable and encapsulated in nonconductive cases. The modules are rated to full load at 85 C case temperature with no external filtering or heat sinking. The MA010-Series Power Modules use advanced, surfacemount technology and deliver high-quality, compact, dc-dc conversion at an economical price. MOUNTING HOLES for 5 Volt Switching Power Supply From Center of hole to Center of hole is 2.412 inches From Center of hole to Center of hole is .987 inches GREAT NEW PRODUCT....GREAT PRICE (Need 5 volts from 12 v for your electronic accessories? was posted and is owned by: Jeannette Nielsen) |
