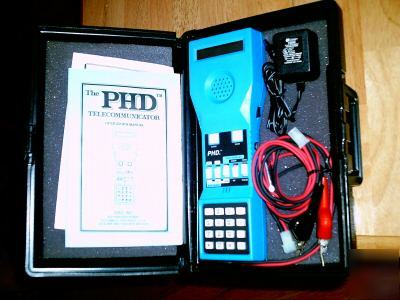

This Test Equipment is LIKE NEW! MORE THAN JUST AN EDUCATED GUESS. THE PHD TELECOMMUNICATOR is an enhanced test set that integrates all of the features provides by an ordinary Butt-Set with a hands-free monitoring device, a dB meter and a digital multimeter in one compact, portable device. In addition to these features, THE PHD TELECOMMUNICATOR also contains ZIAD's exclusive digit display that captures and displays the values of all tone and pulse dialled digits, including on/off time and dB levels (for tones) or % break, pulses per second and interdigit time (for pulses). The digit display also monitors the line status (on-hook/off-hook), zero volt intervals and non-DTMF voice band tones.. SMART BUSINESS FOR YOUR BUSINESS In today's business world, getting the jump on your competition is an important step towards success. That's why THE PHD TELECOMMUNICATOR is smart business for your business. * Integrates the most common test equipment into a single device. It's more than a BUTT-SET. More than a digital multimeter. More than a hands-free monitoring device. It does so many things...and it does them extremely well. * Stops finger pointing by locating the source of most common problems quickly and easily. In fact, the person with the PHD usually wins most arguments. * Lets you solve telecommunications problems, without those time-consuming trips back to the shop. That's right...with this portable device you can get the job done, where the job is done. * Saves time. Saves labour. Saves money. And in our business, that's getting the job done. THE PHD TELECOMMUNICATOR gets the job done, where the job is done. That's how we save businesses time...and money. 2. Min. voltage across tip & ring — TALK 5. DTMF Frequency Deviation (max) 6. DTMF display ON/OFF time range 7. Min. Dial Pulse receive rate 8. Max. Dial Pulse receive rate 9. Min. Dial Pulse receive break% 10. Max. Dial Pulse receive break% 11. Min. Dial Pulse receive interdigit time 12. Min. In-Band tone presence 14. Max. In-Band tone deviation 15. Min. Long Pulse (hookflash) presence 16. Min. Zero Volt (wink) interval 17. Off-hook/Dial Pulse threshold DIGITAL MULTI-METER FUNCTION (all ± 1% FS) ******************************************************************************************************************************************************************************************* In addition , The PHD Telecommunicator provides an amplified audio monitor and a fully functional speakerphone, allowing hands-free operation. The unit is equipped with a 4x4 telephone keypad capable of dialing the fourth-column DTMF tones (this includes the A, B, C, & D tones). The built-in Digital Multimeter measures both AC & DC Volts in the range of +/-000.0 to 199.9 volts and and DC Current in the range of 0.000 to 199.9 milliamps. The dB Meter measures decibel levels in single dB increments, while in the digit analyzing mode and in three dB increments, in the dB mode. The range of the dB meter is 0 dB to -27 dB. The unit weighs 24 ounces and is housed in a high-impact ABS plastic case. It measures 10.25" x 3.25" x 1.5" and comes in its own double-walled, foam-lined carrying case. Included with each unit are: five foot test leads with 66 block clips (color coded; red & black), four AA alkaline batteries and one type 3AG1/4-amp fuse. This unit is warranted for six months. Extended warranties are available: Optional cords and accessories: * Bantam Plug w/four foot leads * Modular (RJ11) Plug w/four foot leads * Meter Probes w/four foot leads * 120VAC Wall Mounted Power Adapter (Ziad phd telecommunicator test set was posted and is owned by: Noreen Gates) |
Noreen-gates@chicagopartsnetwork.com (Noreen Gates) for more information.
