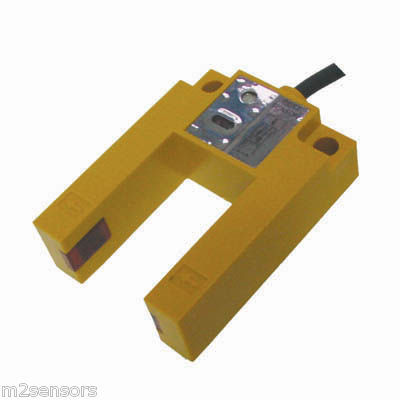

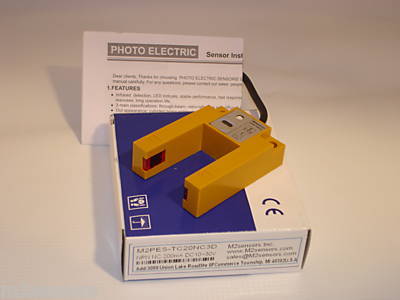

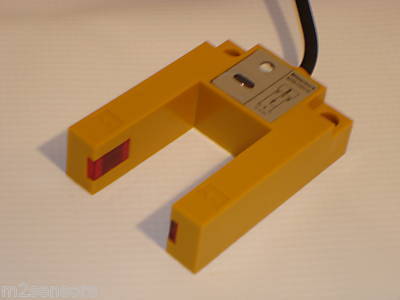

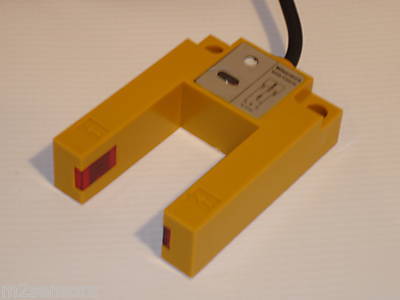

M2sensors Inc. NEW General Purpose Photoelectric Thrubeam or 'Slot' Sensor OPERATING PRINCIPLE: The sensor configuration consists of an opposing emitter and receiver. The emitter generates the a light path from an Infrared (IR) LED which is picked up by the receiver. When the light path is broken the sensor provides the specified output. SENSOR PURCHASE INCLUDES: 2m potted-in Cable & 2 Page Operators Instructions. GENERAL PURPOSE CLASSIFICATION: Units will detect objects if different shapes, sizes, colors and materials. This is a PNP, NO switch with a Standard Sensing range of 1.0mm - 30.0mm, (Slot width is 30mm). * DC Supply Voltage 10 - 30VDC * Off State Leakage Current 15 A * Continuous Load Current 200mA * 2 Operational Status LED's on the rear of the unit with audible status switch. * Ingress Protection Rating of IP-64 per IEC 529 * CE mark applied by the manufacturer * Standard Target 1.0mm - 30.0mm Range * Output Voltage Drop < 1.5 VDC * Reverse Polarity Protection built in * Overall Sensor Length - 72.0 mm * Overall Sensor Width - 52.0 mm * Overall Sensor Height - 20.0mm The 'NEW VALUE' in the Inductive Proximity Sensor Market: (Thrubeam or slot photoelectric sensor pnp, no was posted and is owned by: Crystal Hart) |
c_hart@chicagopartsnetwork.com (Crystal Hart) for more information.
