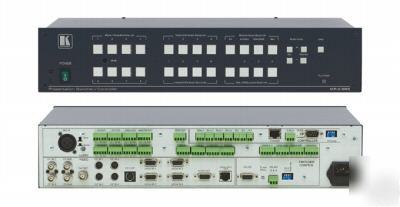

Manufacturer: Kramer Electronics Model/Part #: VP-23RC Kramer VP-23RC Presentation Switcher Controller Audio Video The VP-23RC is a 4x1 composite video, a 4x1 s-Video (Y/C) and 4x1 computer graphics video switcher, each with balanced stereo audio. It will control audio components, video components and other room facilities such as lights and screens. Paired Receivers: PT-120, TP-105, TP-120, VP-5R High Bandwidth - 350MHz (-3dB) computer graphics video, 385MHz s-Video (Y), 650MHz (-3dB) composite video, and CAT 5 up to UXGA. Computer Graphics Outputs - CAT 5 up to 100m (>300 ) & 15-pin H. HD connectors. Audio Level (Gain) Controls for Each Output. Built-in Audio Amplifier 5 Watt RMS per channel with speaker output connectors. Talk-Over Button Microphone input signal mutes the line Audio output when a microphone detects sound. Flexible Control Options - Front panel (room, audio & video), 1xRS-485, 2xRS-232 (K-Router Windows -based software is included), 1xEthernet, 4xRelays, 3xIR emitters, & IR remote control unit included). (Kramer vp-23RC presentation switcher controller video was posted and is owned by: Misty Haynes) |
